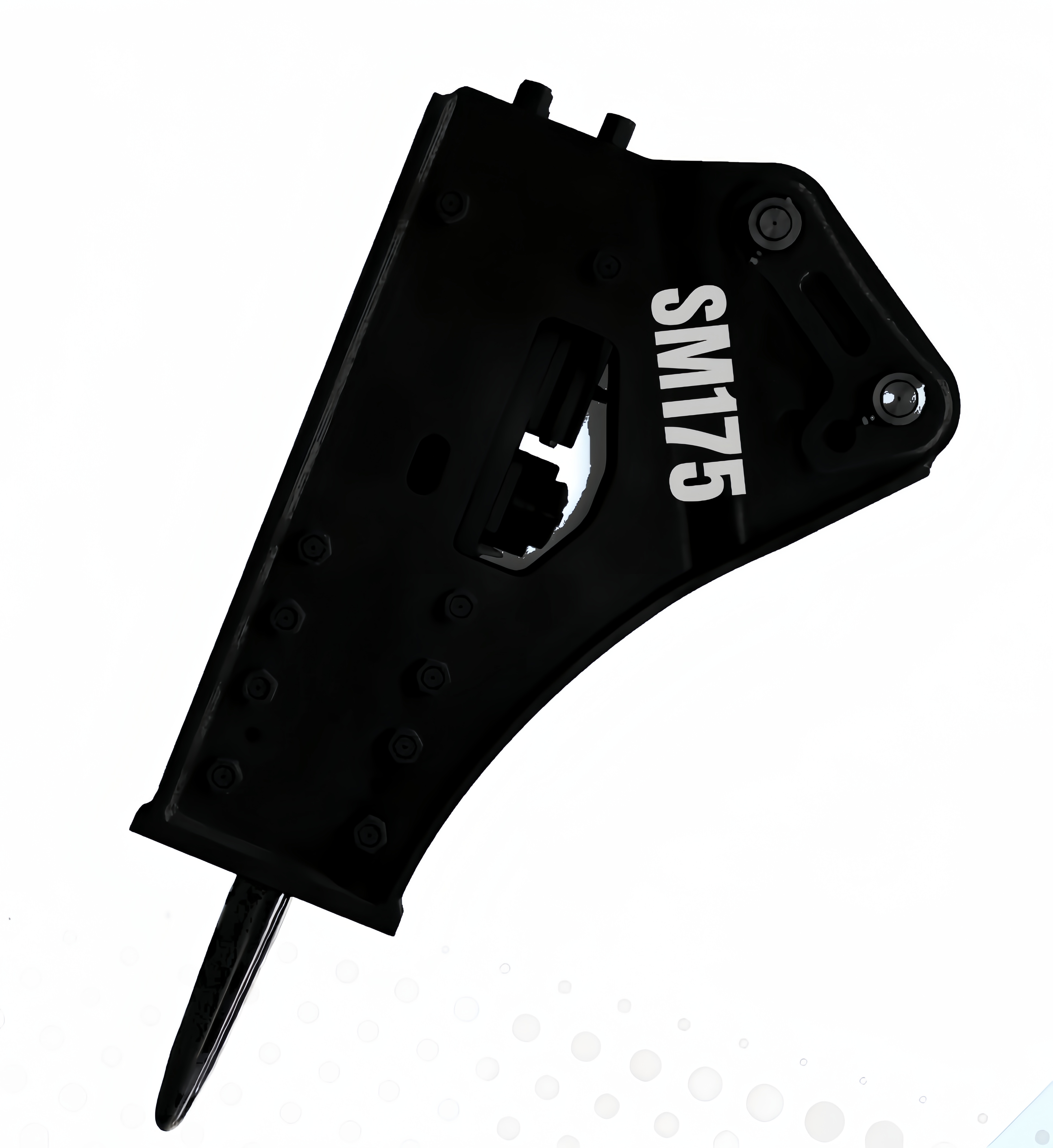

Heavy Duty Excavator Rock Breaking special rock Hammer for quarry mine

Availability:
Quantity:
Inquire Add to Basket

  • SM175

  • SLYM

  • China

  • 1pc

  • L/C, T/T

  • standard export packaging

  • 3-5days

  • 12 months

  • avalible

  • 33-50ton

  Side Type heavy duty hydraulic Breakers
  Reducing total-length
  More convenience to handle the breaking object
  Easy maintence

  Heavy-duty Hydraulic Breakers
  Powerful hammering
  Easy maintence
  Excellent environmental protection

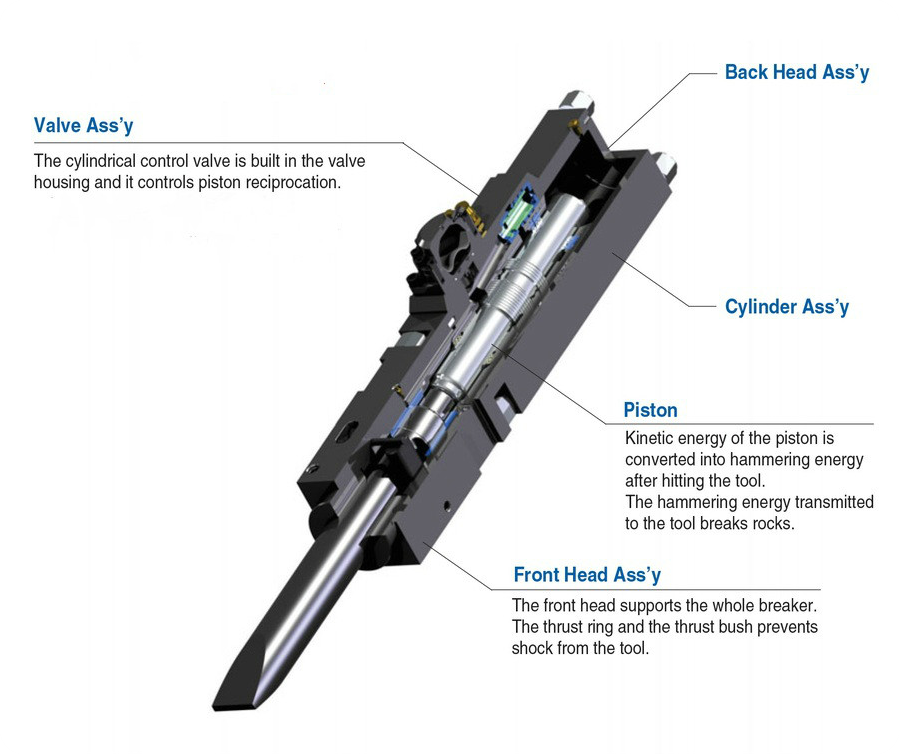

with accumulator breaker 内部构造
    Applicable Field:

    Mining---Mining, Second time Breaking

    Metallurgy---Clearing Slag, Demolition of furnace and foundation

    Road---Repairing, Breaking, Foundation Work

    Railway---Tunneling, Demotion of Bridge

    Construction---Demolition of building and reinforced concrete

    Ship Repairing---Clearing clam and trust from the hull.

    Others---Breaking frozen mud

   Applicable Excavator:
  型号 品牌_meitu_1_conew1




              Items
          Units
          SM175
         Operating Weight

          kg

            ibs

          2,995

           6,589
         Working Pressure
         bar
           psi
        170~190
        2,465~2,755
         Maximum Pressure

        bar

         psi

         240

          3,480
         Operating Oil Flow
       l/min
         210~290
         Chisel Diameter         mm
         175
            Impact Rate
       bpm
        280~400
         Impact Energy
         j
        kg.m
        7,500
          860
         Suitable Excavator
        ton
         ibs
         33~50
       72,750~88,180
