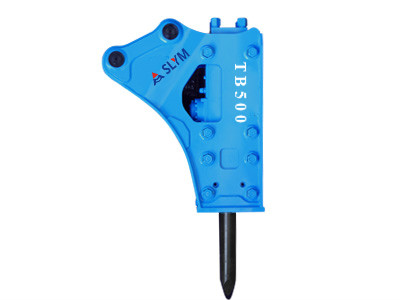

Heavy Duty Hydraulic Large Rock Breaker Hammer for Digger Excavator

Availability:
Quantity:
  • TB500/SM175

  • TANK SLYM

  • China

  • 1PC

  • T/T, L/C

  • Export standard package

  • 5-8days

  • 6month

  • available

  • 43t-50t

  Side Type Breakers
  Reducing total-length
  More convenience to handle the breaking object
  Easy maintence

  Heavy-duty Hydraulic Breakers
  Powerful hammering
  Easy maintence
  Excellent environmental protection
 with accumulator breaker 内部构造


  Applicable Field:
  Mining---Mining, Second time Breaking
  Metallurgy---Clearing Slag, Demolition of furnace and foundation
  Road---Repairing, Breaking, Foundation Work
  Railway---Tunneling, Demotion of Bridge
  Construction---Demolition of building and reinforced concrete
  Ship Repairing---Clearing clam and trust from the hull.
  Others---Breaking frozen mud

 Applicable Excavator:
型号 品牌_meitu_1_conew1




         ITEM


          UNITS


          TB500/SM175


         Side Type


          kgs
          1b


          3,902
          8,584


         Operating Presure


          kgf/cm²
          psi


          160~180
          2,275~2,559


         Oil Capacity


          1/min
          gpm


          220~290
          58.1~76.5


         Blows


          bpm


          240~320


         Chisel Diameter


          mm
          inch


          175
          6.9


         Hose Size


          mm
          inch


          32
          PF11/4"


         Suitable Excavator


          ton
          1b
          m³
          ft³


          43~50
          77,166~110,230
          1.8~2.2
          63.54~77.66

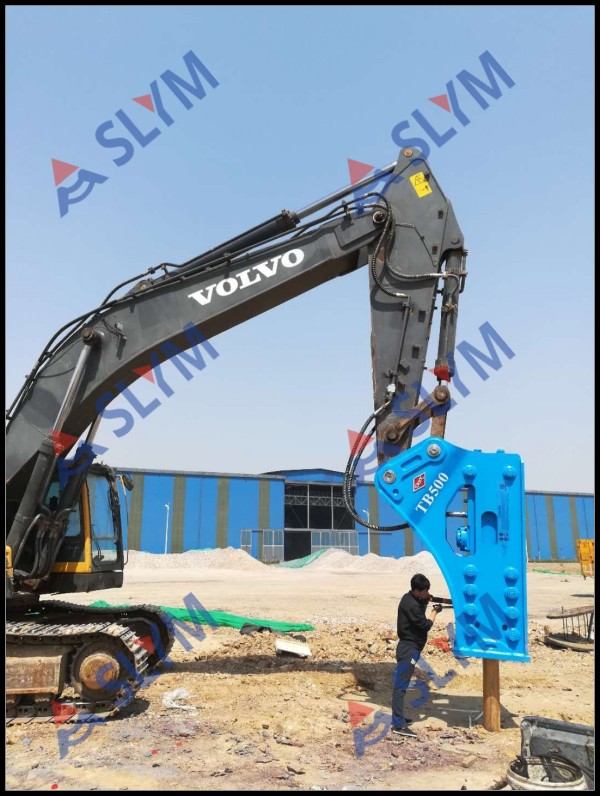

TB500_20180503161513

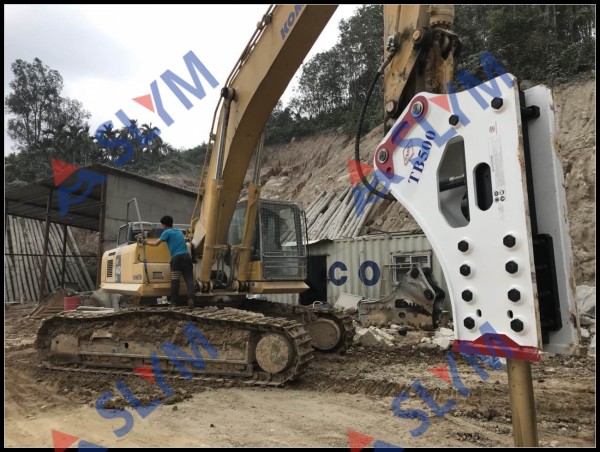

TB500_2018050316151323
