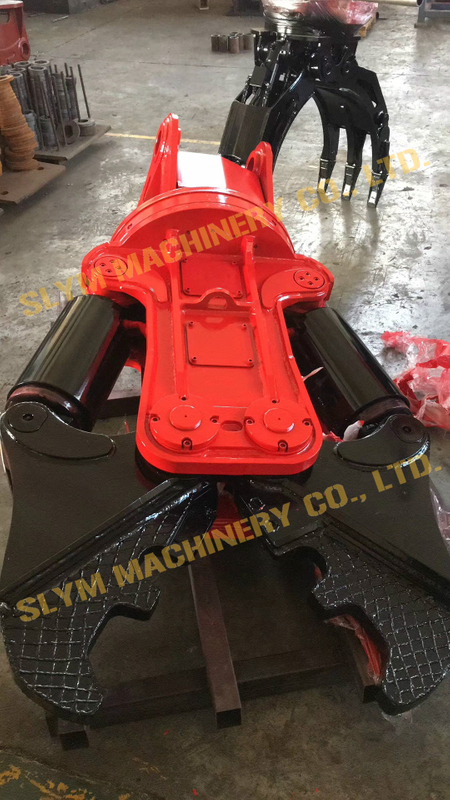

Hydraulic Cut Demolition Shear Crusher Concrete Pulverizer for Diggers Excavator

Main Features
1. material Thyssen Krupp XAR steel, Durable in use, high level machining precision and high breaking capacity.
2. 360 rotation function available
Availability:
Quantity:
Inquire Add to Basket

  • all model

  • SLYM

  • China

  • 1 pc

  • T/T, L/C, Western Union

  • standard exporting package

  • 5-8days

  • 6 months

  • available

  • 10-30ton

hydraulic cutting crusher

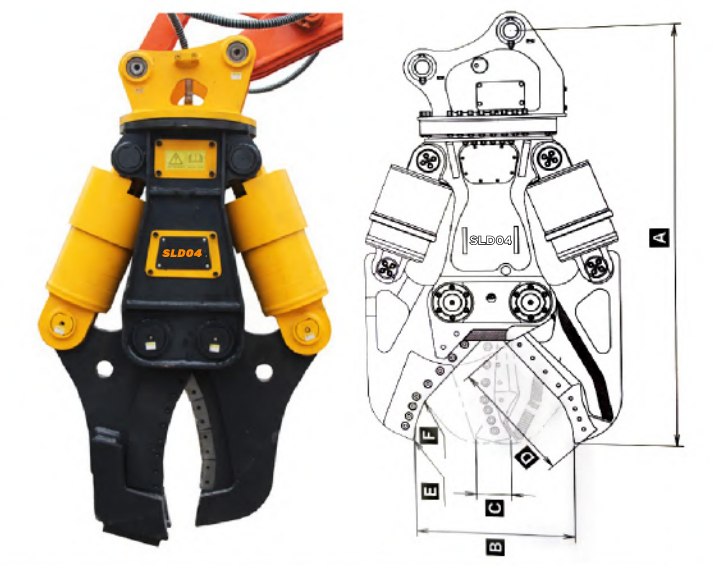

Items Unit SLD01
 SLD02 SLD04 SLD06 SLD08 SLD10
Max.Operating Pressure Mpa 24.5
 24.5 24.5 31.4 31.4 31.4
Overall Length(A) mm 1,120 1,310 1,570 1,950 2,260 2,570
Max. Jaw Opening(B) mm 225 375 505 700 855 1,010
Min. Jaw Opening(C) mm +95 -110 -120 -150 -190 -210
Blade Length(D) bottom+tip mm 165+103 205+155 260+175 325+210 400+260 450+310
Tip Cutting Force (E) kn 245 323 431 735 990 1,270
Center Cutting Force(F) kn 372 500 627 1,060 1,440 1,870
Weight kg 330 450 800 1,540 2,490 3,790
Suitable Excavator ton 3-4 4-5 6-8 12-14 20-22 30-35
