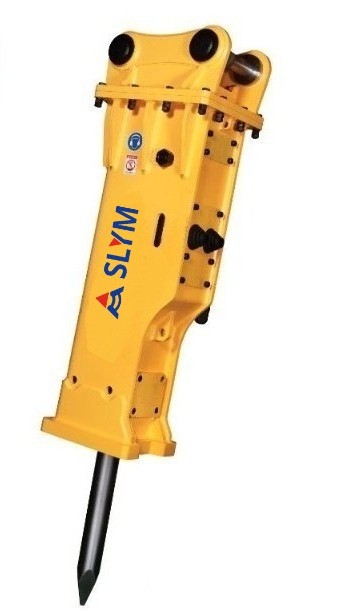

Hyundai excavator breaker bocat rock breaker

Quantity:



Inquire Add to Basket

Model:
TB210
Brand:
TANK
Productivity:
5000sets/year
Origin:
China
Packing:
Standard Export Plywood Package
MOQ:
1 PC
Delivery Term:
within 5-10days after the payment recepit
Price Term:
FOB, CIF, C&F
Payment Term:
T/T

Slience Type breakers
-Low noise level
-Full-closed breacket protects the main body from damage

带蓄能器解剖tu_2

1. Main Valve

1) Easy to repair
2) To prevent the cylinder deformation

2. Piston

1) Piston stroke, increase blow f orce
2) Special damping system, reduce the recoil force
3) Precision of piston and cylinder is further improved, reduce resistance, improve efficiency

3. The high quality of chisel

1). Alloy steel raw material selection.
2) The depth of heat high precision processing
3) Heat resistance, wear resistance strong

4. The whole box shell

1) The durable welding structure, chisel protection more perfect and more stable
2) The seal is complete, eff ective dust control measures to improve the durability of structure, protect against cylinder damage and the bushings premature wear
3) The big plate with light weight, simple structure ,convenient operation and repair

5. Nitrogen chamber

1) Structure more compact
2) Ensure the reduction of the nitrogen chamber volume of the nitrogen pressure under the condition of invariable, the hammer is more energy saving

6. Tool Bush

7. Tool Pin

8. Accumulator Ass'y

1) The accumulator compensates for pressure in the hydraulic circuit and precents pulsation.
2) It's not usually nessary to Refill.
3) Use N2-gas only.

9. Cylinder

10. Back Head

11. Through Bolt

The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts

Applicable Field:

Mining---Mining, Second time Breaking

Metallurgy---Clearing Slag, Demolition of furnace and foundation

Road---Repairing, Breaking, Foundation Work

Railway---Tunneling, Demotion of Bridge

Construction---Demolition of building and reinforced concrete

Ship Repairing---Clearing clam and trust from the hull.

Others---Breaking frozen mud

Applicable Excavator:

型号品牌_meitu_1_conew1

Items	Units	TB210
Slience Type	kg/1bs	1,708/3,758
Operating Pressure	kgf/cm2 psi	160~180 2,275~2,559
Oil Capacity	1/min gpm	120~150 31.7~39.6
Blows	bpm	400~800
Impact Energy	ft.1bs Joules	2,470 3,360
Chisel Diameter	mm inch	135 5.3
Hose Size	mm inch	25 PF1''
Suitable Excavator	ton 1b m3 ft3	20~26 44,099~57,320 0.7~0.9 24.71~31.77
