Large Special Hydraulic Rock Breaker hammer for Quarry Mine

Availability:
Quantity:
  • SM175

  • SLYM

  • China

  • 1pc

  • L/C, T/T

  • standard export packaging

  • 3-5days

  • 12 months

  • avalible

  • 43-50ton

  Top Type Breakers
  Easy control and easy position make it more convenience to excavation work
  Without side-weight, reducing the rate of chisel breakage
  Longer total length and heavier total-weight

  Heavy-duty Hydraulic Breakers
  Powerful hammering
  Easy maintence
  Excellent environmental protection

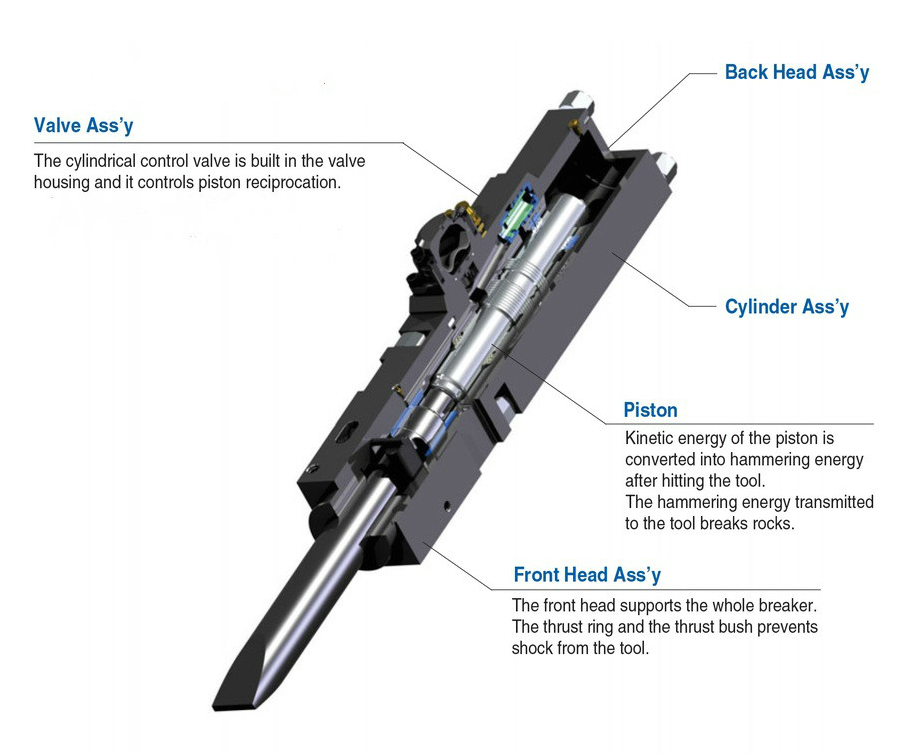

 with accumulator breaker 内部构造

  Applicable Field:
  Mining---Mining, Second time Breaking
  Metallurgy---Clearing Slag, Demolition of furnace and foundation
  Road---Repairing, Breaking, Foundation Work
  Railway---Tunneling, Demotion of Bridge
  Construction---Demolition of building and reinforced concrete
  Ship Repairing---Clearing clam and trust from the hull.

Others---Breaking frozen mud

Applicable Excavator:
型号 品牌_meitu_1_conew1



          Items
           Units
         SM175
         Top Type
           kg
             ibs
          3,895
          8,569
        Operating Pressure
          kgf/cm2
          psi
          160~180
          2,275~2,559
         Oil Capacity
          1/min
          gpm
          220~290
          58.1~76.5
         Blows
          bpm
          240~320
         Impact Energy
          ft ibs
          Joules
          9,000
          12,240
         Chisel Diameter
          mm
          inch
          175
          6.9
         Hose Size
          mm
          inch
          32
          PF11/4"
         Suitable Excavator
         ton
          ib
          m3
          ft3
          43~50
          77,166~110,230
          1.8~2.2
          63.54~77.66


SLYM Package_20200915105910SLYM Delivery

how to order_20181
