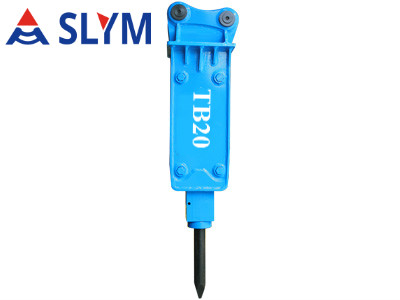

Mini Hydraulic Hammer for Small Digger

Availability:

Quantity:



Inquire Add to Basket

Model:
SM40/TB20
Brand:
TANK/SLYM
Place Of Origin:
China
MOQ:
1pc
Payment Terms:
L/C, T/T
Package Details:
standard export packaging
Delivery Time:
3-5days
Warranty:
12 months
OEM ODM:
avalible
Suitable Excavator:
0.5-1.5ton

Top Type Breakers
Easy control and easy position make it more convenience to excavation work
Without side-weight, reducing the rate of chisel breakage
Longer total length and heavier total-weight

Light-Duty Hydraulic Breakers
Prolonged life
Steady performance
Reliable after-sales service

1. Main Valve

1) Easy to repair
2) To prevent the cylinder deformation

2. Piston

1) Piston stroke, increase blow f orce
2) Special damping system, reduce the recoil force
3) Precision of piston and cylinder is further improved, reduce resistance, improve efficiency

3. The high quality of chisel

1). Alloy steel raw material selection.
2) The depth of heat high precision processing
3) Heat resistance, wear resistance strong

4. The whole box shell

1) The durable welding structure, chisel protection more perfect and more stable
2) The seal is complete, eff ective dust control measures to improve the durability of structure, protect against cylinder damage and the bushings premature wear
3) The big plate with light weight, simple structure ,convenient operation and repair

5. Nitrogen chamber

1) Structure more compact
2) Ensure the reduction of the nitrogen chamber volume of the nitrogen pressure under the condition of invariable, the hammer is more energy saving

Applicable Field:

Mining---Mining, Second time Breaking

Metallurgy---Clearing Slag, Demolition of furnace and foundation

Road---Repairing, Breaking, Foundation Work

Railway---Tunneling, Demotion of Bridge

Construction---Demolition of building and reinforced concrete

Ship Repairing---Clearing clam and trust from the hull.

Others---Breaking frozen mud

Applicable Excavator:
型号品牌_meitu_1_conew1

ITEM	UNITS	SM40/TB20
Top Type	kgs ib	75 165
Operating Presure	kgf/cm² psi	80~110 1,137~1,564
Oil Capacity	l/min gpm	18~28 4.7~7.4
Blows	bpm	800~1,230
Chisel Diameter	mm inch	40 1.6
Hose Size	mm inch	9 PF1/2
Suitable Excavator	ton ib m³ ft³	0.7~1.3 1,543~2,866 0.01~0.04 0.35~1.41

ITEM	UNITS	SM40/TB20
Top Type	kgs ib	75 165
Operating Presure	kgf/cm² psi	80~110 1,137~1,564
Oil Capacity	l/min gpm	18~28 4.7~7.4
Blows	bpm	800~1,230
Chisel Diameter	mm inch	40 1.6
Hose Size	mm inch	9 PF1/2
Suitable Excavator	ton ib m³ ft³	0.7~1.3 1,543~2,866 0.01~0.04 0.35~1.41
