Our Service: 1) Any your inquiry related our products will be replied with 24 hours 2) We can also provide OEM business 3) Warranty: 1 year and For free techinical support all the time. 4) How to get the correct information of goods? Pls let us know the following news: a. Your excavator model b. The operation weigt of your excavator c. The quantity of your order d. Your destination port

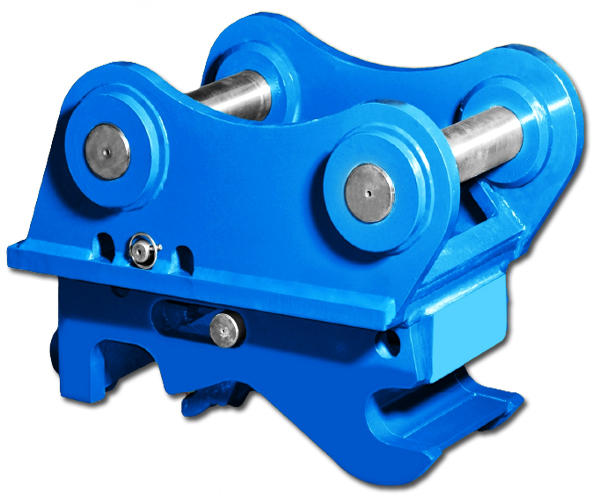

Characteristics of excavator quick hitch:
1. Use material of high hardness; Suitable for different excavator of 2-45ton.
2. Use security device with hydraulic control valve to ensure the safety.
Suitable excavator:
Our Service: 1) Any your inquiry related our products will be replied with 24 hours 2) We can also provide OEM business 3) Warranty: 1 year and For free techinical support all the time. 4) How to get the correct information of goods? Pls let us know the following news: a. Your excavator model b. The operation weigt of your excavator c. The quantity of your order d. Your destination port
Characteristics of excavator quick hitch:
1. Use material of high hardness; Suitable for different excavator of 2-45ton.
2. Use security device with hydraulic control valve to ensure the safety.
Suitable excavator:

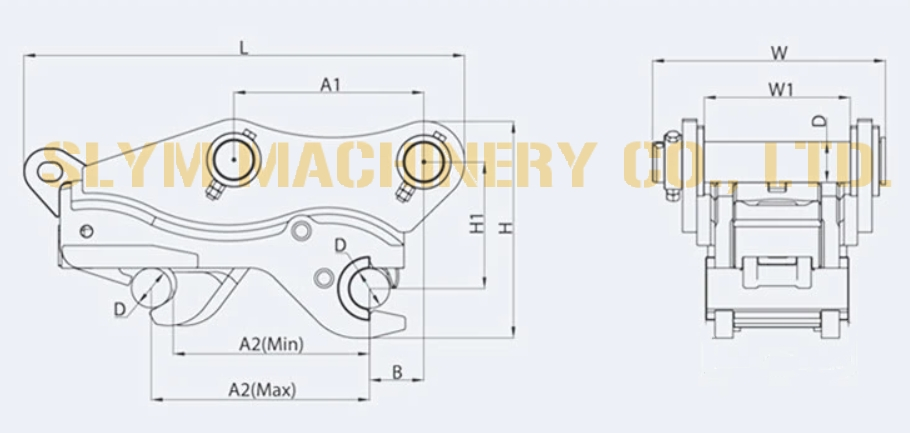

Item
Unit
SLK04
Overall length(L)
mm
600
Overall Height(H)
mm
310
Overall Width(W)
mm
270-280
Pin To Pin Center Distance(A1)
mm
290-360
Forearm Open Width(W1)
mm
180-200
Retractable Distance Of Oil Cylinder(A2)
mm
340-450
Top To Bottom Pin Distance(H1)
mm
195
Pin Diameter(D)
mm
50-55
Weight
kg
80
Working Pressure
kg/cm2
40-380
Required Oil Flow
l/min
10-20
Suitable Excavator
ton
5-8
Item
Unit
SLK04
Overall length(L)
mm
600
Overall Height(H)
mm
310
Overall Width(W)
mm
270-280
Pin To Pin Center Distance(A1)
mm
290-360
Forearm Open Width(W1)
mm
180-200
Retractable Distance Of Oil Cylinder(A2)
mm
340-450
Top To Bottom Pin Distance(H1)
mm
195
Pin Diameter(D)
mm
50-55
Weight
kg
80
Working Pressure
kg/cm2
40-380
Required Oil Flow
l/min
10-20
Suitable Excavator
ton
5-8

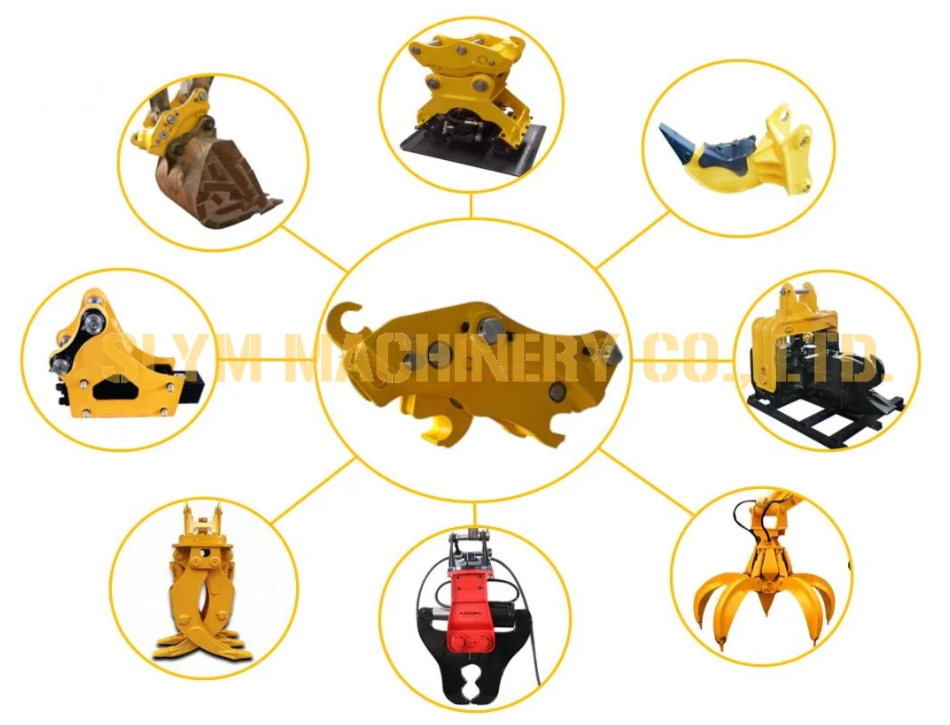

Application of hydraulic quick hitch:
1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.
2. Can change the accessories without disassembling the pin and axle, thus realize faster installation
Application of hydraulic quick hitch:
1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.
2. Can change the accessories without disassembling the pin and axle, thus realize faster installation
