Slym Excavator Hydraulic Quick Hitch for Sale

Availability:
Quantity:
Inquire Add to Basket

  • SLK08

  • SLYM

  • China

  • 1PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5days

  • 12month

  • available

  • 17-23ton

  Characteristics of excavator quick hitch:
  1. Use material of high hardness; Suitable for different excavator of 2-45ton.
  2. Use security device with hydraulic control valve to ensure the safety.



      The main structure of excavator hydraulic quick hitch and accessories:
  SLKmin-110快速连接器_meitu_1
 1)  Body
 2) Cylinder
 3) Hitch
 4) Hitch Pin
 5) Safety Pin
 6) R-type Stop Ring
 7) Cyliner Pin
 8) Snap Ring
 9) Frame Pin
 10) Bracket Pin
 11) Safety Bar
 12) Latch Of Safety
 13) Hose
 14) Check Valve
 15) Hook


 Our Service:
 1)  Any your inquiry related our products will be replied with 24 hours
 2)  We can also provide OEM business
 3)  Warranty: 1 year and For free techinical support all the time.
 4) How to get the correct information of goods? Pls let us know the following news:


   a. Your excavator model
   b. The operation weigt of your excavator
   c. The quantity of your order
   d. Your destination port


  Suitable excavator:
型号 品牌_meitu_1_conew1

quick hitch description22031618350

       Item        Unit        SLK08
       Overall length(L)        mm        924-944
       Overall Height(H)        mm        492
       Overall Width(W)        mm        449-483
       Pin To Pin Center Distance(A1)        mm        460-480
       Forearm Open Width(W1)        mm        306-340
       Retractable Distance Of Oil Cylinder(A2)        mm        256-390
       Top To Bottom Pin Distance(H1)        mm        275
       Pin Diameter(D)        mm        70-80
       Weight        kg        280-290
       Working Pressure        kg/cm2        40-380
       Required Oil Flow        l/min        10-20
       Suitable Excavator        ton        17-23


Application of hydraulic quick hitch:

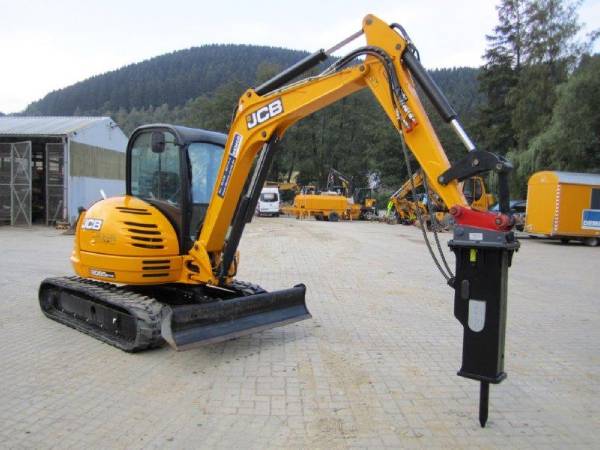

1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.
2. Can change the accessories without disassembling the pin and axle, thus realize faster installation

application of quick hitch202203161
