Slym Hydraulic Quick Hitch Coupler for Heavy Duty Digger Excavator

Availability:

Quantity:



Inquire Add to Basket

Model:
SLK20
Brand:
SLYM
Place Of Origin:
China
MOQ:
1PC
Payment Terms:
T/T, L/C, Western Union
Package Details:
standard exporting package
Delivery Time:
5-8days
Warranty:
12month
OEM ODM:
available
Suitable Excavator:
50-80ton

Characteristics of our quick hitch:

1. Use material of high hardness; Suitable for different excavator of 2-45ton.

2. Use security device with hydraulic control valve to ensure the safety.

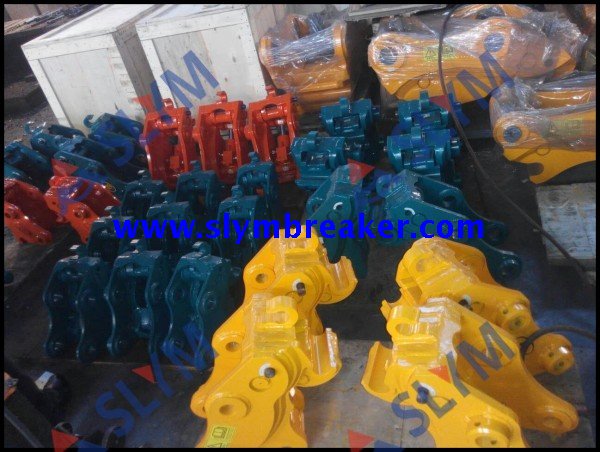

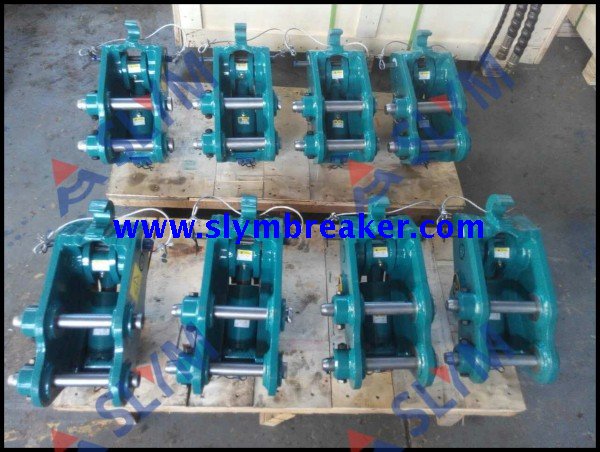

hydraulic quick hitch details

Our Service:
1) Any your inquiry related our products will be replied with 24 hours
2) We can also provide OEM business
3) Warranty: 1 year and For free techinical support all the time.
4) How to get the correct information of goods? Pls let us know the following news:

a. Your excavator model
b. The operation weigt of your excavator
c. The quantity of your order
d. Your destination port

Suitable excavator:

Item	Unit	SLK20
Overall length(L)	mm	1,215-1,425
Overall height(H)	mm	685-780
Overall width(W)	mm	640-760
Pin to pin center(A1)	mm	620-750
Forearm open width(W1)	mm	472-560
Retractable distance of oil cyliner(A2)	mm	640-780
Top to bottom pin distance(H1)	mm	400-500
Pin diameter(D)	mm	100-140
Weight	kg	700-1,150
Working pressure	kg/cm²	40-380
Oil flow	l/min	10-20
Suitable excavator	ton	50-80

Item	Unit	SLK20
Overall length(L)	mm	1,215-1,425
Overall height(H)	mm	685-780
Overall width(W)	mm	640-760
Pin to pin center(A1)	mm	620-750
Forearm open width(W1)	mm	472-560
Retractable distance of oil cyliner(A2)	mm	640-780
Top to bottom pin distance(H1)	mm	400-500
Pin diameter(D)	mm	100-140
Weight	kg	700-1,150
Working pressure	kg/cm²	40-380
Oil flow	l/min	10-20
Suitable excavator	ton	50-80
