Title Hitch for Excavator Digger Hydraulic Slym Qucik Hitch

Availability:
Quantity:
Inquire Add to Basket

  • SLK08

  • SLYM

  • China

  • 1PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5days

  • 12month

  • available

  • 17-23ton


    Characteristics of excavator quick hitch:

    1. Use material of high hardness; Suitable for different excavator of 2-45ton.

    2. Use security device with hydraulic control valve to ensure the safety.

   Our Service:
   1)  Any your inquiry related our products will be replied with 24 hours
   2)  We can also provide OEM business
   3)  Warranty: 1 year and For free techinical support all the time.
   4) How to get the correct information of goods? Pls let us know the following news:


     a. Your excavator model
     b. The operation weigt of your excavator
     c. The quantity of your order
     d. Your destination port

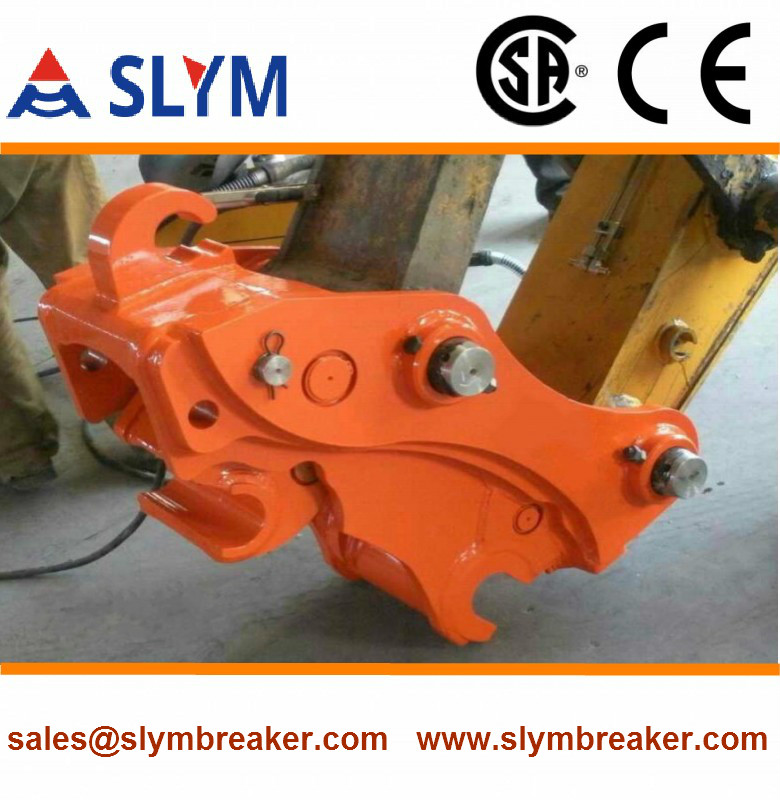

hydraulic quick hitch details


    Suitable excavator:
  型号 品牌_meitu_1_conew1

quick hitch description22031618350

       Item        Unit        SLK80
       Overall length(L)

       mm

        inch

       924-944

    363.78-371.65
       Overall Height(H)

       mm

        inch

       492

      193.70
       Overall Width(W)

       mm

        inch

       449-483

    176.77-190.16
       Pin To Pin Center Distance(A1)

       mm

        inch

       460-480

    181.10-188.98
       Forearm Open Width(W1)

       mm

        inch

       306-340

    120.47-133.86
       Retractable Distance Of Oil Cylinder(A2)

       mm

        inch

       256-390

    100.79-153.54
       Top To Bottom Pin Distance(H1)

       mm

        inch

       275

      108.27
       Pin Diameter(D)

       mm

        inch

       70-80

    27.56-31.50
       Weight

       kg

         ib

       280-290

    617.29-639.34
       Working Pressure

       kg/cm2

        psi

       40-180

      569-2,559
       Required Oil Flow        l/min        10-20
       Suitable Excavator

       ton

         ib

         m3

         ft3

       17-23

  37,479-50,706

        0.7-0.9

    24.71-31.77


Application of hydraulic quick hitch:


1. Can be used on excavator to change the accessories (please check machine as bleow) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.


2. Can change the accessories without disassembling the pin and axle, thus realize faster installation

application of quick hitch202203161
