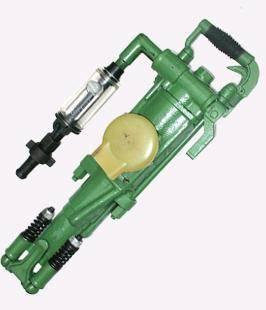

YT28 pneumatic breaker

Quantity:
  • YT28

  • China

  • plywood case

  • 10 sets

  • Within 15days after receipt of your payment

  • FOB, CIF, C&F

  • T/T

 1.The rock drill is a kind of high efficiency air leg rock drill machine

 2. It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.

 3. It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five-eight meters.

 4. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.

 5. It can be fixed on drilling-vehicle or drilling-shelf.

       Weight        ≈ 24 kg
       Length        678mm
       Cylinder dia        70mm
       Piston stroke        70mm
       Air pressure        0.4—0.63MPa
       Impact frequencey        ≥ 31Hz
       Air consumption        ≤66.7 L/S
       Air pipe (inner dia)        19mm
       Water pipe (inner dia)        13mm
       Shank head dia        34-42mm
       Shank dimensions(hex×length)        22×108 mm±1mm
       FT140B Air-leg:
       Length of air-leg        1687mm
       Pushstroke        1250mm
       Cylinderdia        60mm
       Weight        ≈15.6kg
       FT140BD Air-leg:
       Lengthofair-leg        1400mm
       Push  stroke        965mm
       Cylinderdia        60mm
       Weight        ≈13.9kg
       FY200B Oil reservior:
       Capacity        200milliliter
