Breaker Tool Retaining Pin Troubleshooting & Care Guide

The tool retaining pin (chisel pin) holds the chisel inside the front head while absorbing stroke recoil. Because it directly interacts with the moving tool bit, its mechanical condition dictates both tool stability and internal piston alignment.

Failures Caused by Faulty Retaining Pins

• Pin Deformation & Seizure ("Mushrooming"): Cheap pins with soft metal cores deform under recoil impact. The ends expand into bulbous shapes inside the front head, binding the pin and making removal with hand tools impossible.

• Pin Shearing & Fracture: Blank firing (striking without down-pressure) concentrates full impact energy onto the retaining pin. Brittle or non-carburized pins snap clean in two, leaving broken segments jammed inside the housing.

• Piston & Cylinder Scoring (Indirect Failure): A worn pin allows the chisel to wobble laterally. Off-center piston impacts drive the piston sideways against the cylinder wall, causing deep scratches, seal destruction, and power loss.

• Bushing Oil Hole Misalignment: Severe pin wear lets the chisel shift, causing uneven wear on lower bushings and blocking lubricant channels.

Troubleshooting & Prevention Protocol

1. Inspect Contact Faces Weekly: Remove retaining pins every 50 hours. Check for notch indentations, flat spots, or bending. If flat-spot wear exceeds 3 mm, replace the pin immediately.

2. Rotate Pins for Extended Life: Turn retaining pins 180° during routine servicing to expose the un-worn face to the chisel notch, doubling operational service life.

3. Eliminate Blank Firing & Prying: Train operators to maintain firm 90° down-pressure before firing. Never use the chisel as a lever to pry rock.

4. Liberally Grease Tool & Pins: Apply high-temperature molybdenum grease to the chisel shank and retaining pins daily to prevent metal-on-metal galling and heat fusion.

SLYM Case-Hardened Precision

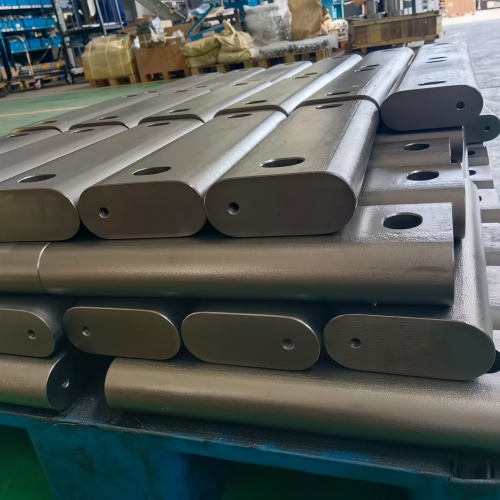

SLYM manufactures replacement tool retaining pins from carburized 20CrMnTi alloy steel (HRC 56–62 surface / HRC 32–40 core). Centerless ground for exact fitment, SLYM pins resist deformation, prevent chisel wobble, and protect internal pistons from scoring.

Need OEM replacement retaining pins or technical support? Contact SLYM Machinery at info@slymmachinery.com.
