excavator digger hydraulic quick coupler hitch

Availability:
Quantity:
Inquire Add to Basket

  • SLK100

  • SLYM

  • China

  • 1PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5days

  • 12month

  • available

  • 33-45ton

  Our Service:
  1)  Any your inquiry related our products will be replied with 24 hours
 2)  We can also provide OEM business
 3)  Warranty: 1 year and For free techinical support all the time.
 4) How to get the correct information of goods? Pls let us know the following news:
 a. Your excavator model
 b. The operation weigt of your excavator
 c. The quantity of your order
 d. Your destination port

  Characteristics of excavator quick hitch:
  1. use material of high hardness; Suitable for different excavator of 2-45ton.
  2. use security device with hydraulic control valve to ensure the safety.

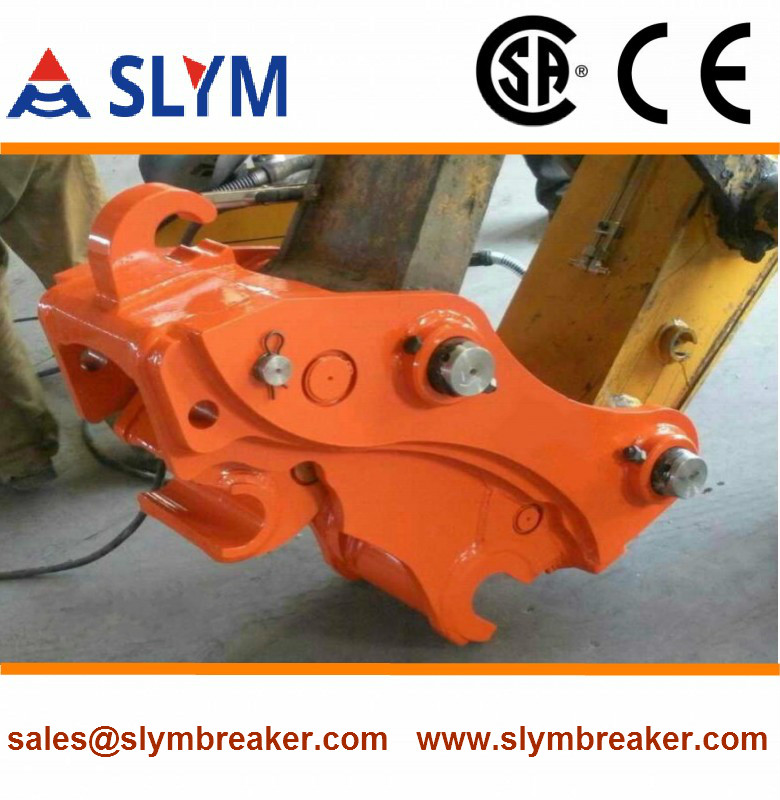

  hydraulic quick hitch details


  Suitable excavator:
型号 品牌_meitu_1_conew1

  quick hitch description22031618350

       Item        Unit        SLK100
       Overall length(L)        mm        1,006-1,173
       Overall Height(H)        mm        558-610
       Overall Width(W)        mm        606-663
       Pin To Pin Center Distance(A1)        mm        550-620
       Forearm Open Width(W1)        mm        416-469
       Retractable Distance Of Oil Cylinder(A2)        mm        520-590
       Top To Bottom Pin Distance(H1)        mm        360
       Pin Diameter(D)        mm        90-120
       Weight        kg        450-580
       Working Pressure        kg/cm2        40-380
       Required Oil Flow        l/min        10-20
       Suitable Excavator        ton        33-45


Application of hydraulic quick hitch:


1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.
2. Can be changed the accessories without disassembling the pin and axle, thus realize faster installation


application of quick hitch202203161
