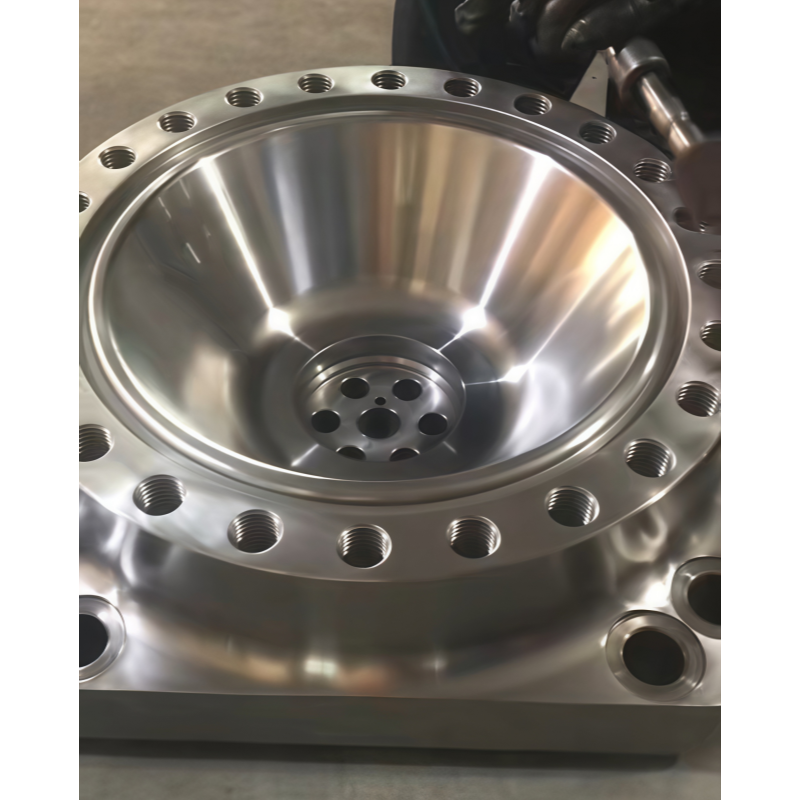

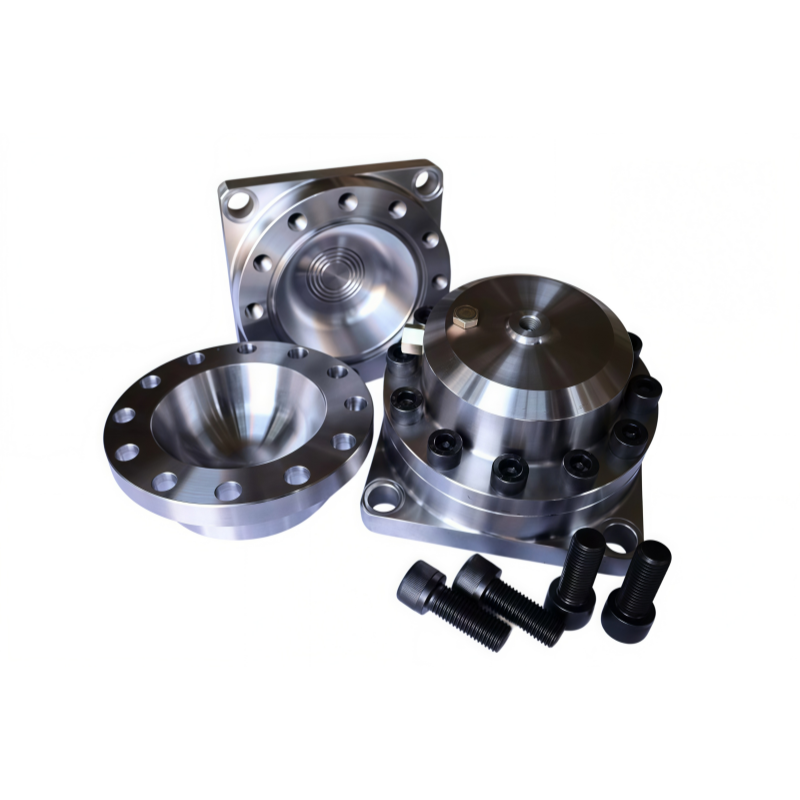

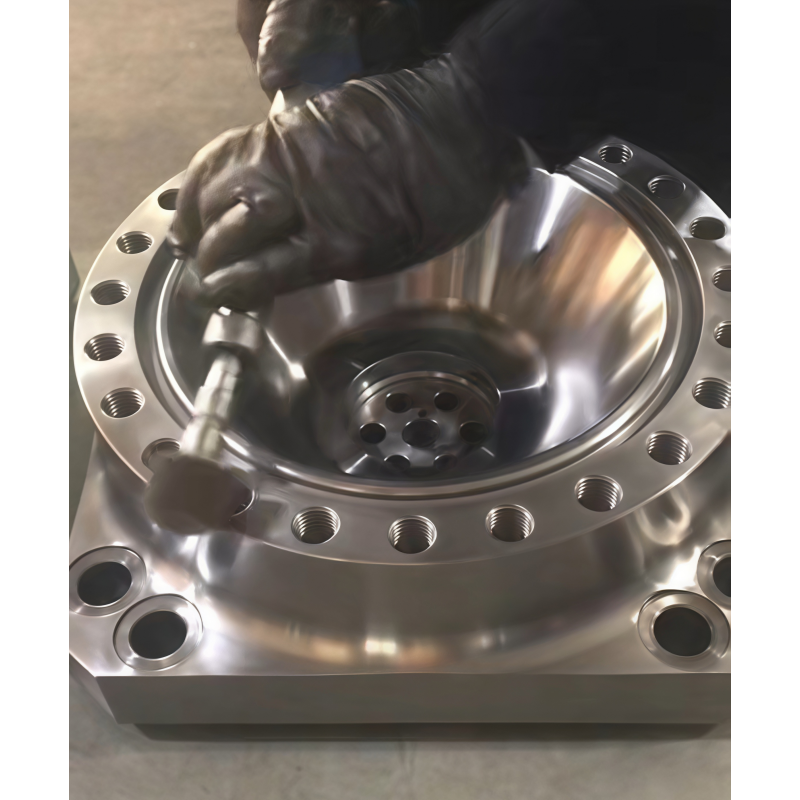

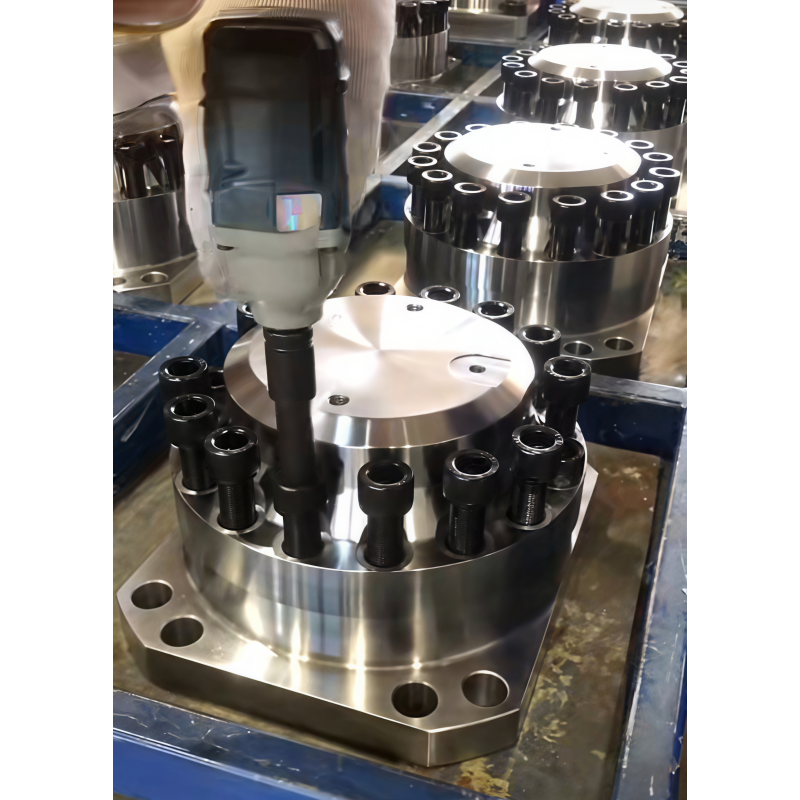

Hydraulic Breaker Accumulator & Diaphragm Assembly

Q1: Why are my excavator hydraulic hoses violently jumping and shaking during breaker operation?

A: Violent hose jumping (hydraulic surge) is the classic symptom of accumulator diaphragm rupture or total Nitrogen (N₂) pressure loss. Without a compressed gas cushion to absorb fluid pulses during piston reversal, peak pressure shockwaves bounce back directly into the excavator’s hydraulic lines and main pump. Inspect the accumulator diaphragm immediately to prevent pump cavitation and hose failure.

Q2: What happens if the Nitrogen gas pressure in the accumulator is charged too high?

A: Over-charging N₂ pressure forces the rubber diaphragm to pin against the bottom oil inlet. When this happens, hydraulic fluid cannot enter the accumulator chamber during the piston upstroke. The piston encounters excessive resistance, causing sluggish operation, reduced striking frequency (BPM), or a complete refusal to strike. Always charge N₂ strictly to manufacturer pressure specifications.

Q3: Why MUST I only use pure Nitrogen (N₂) and NEVER compressed air or Oxygen?

A: CRITICAL SAFETY WARNING: Accumulator chambers must be charged ONLY with pure industrial Nitrogen (N₂ ≥ 99.5%). Never use oxygen, shop air, or flammable gases. Under high compression and elevated oil temperatures (>80℃), mixing oxygen or air with atomized hydraulic oil vapor creates a combustion reaction (diesel effect), risking a catastrophic accumulator explosion.

Q4: How do I know if hydraulic oil has bypassed into the accumulator nitrogen chamber?

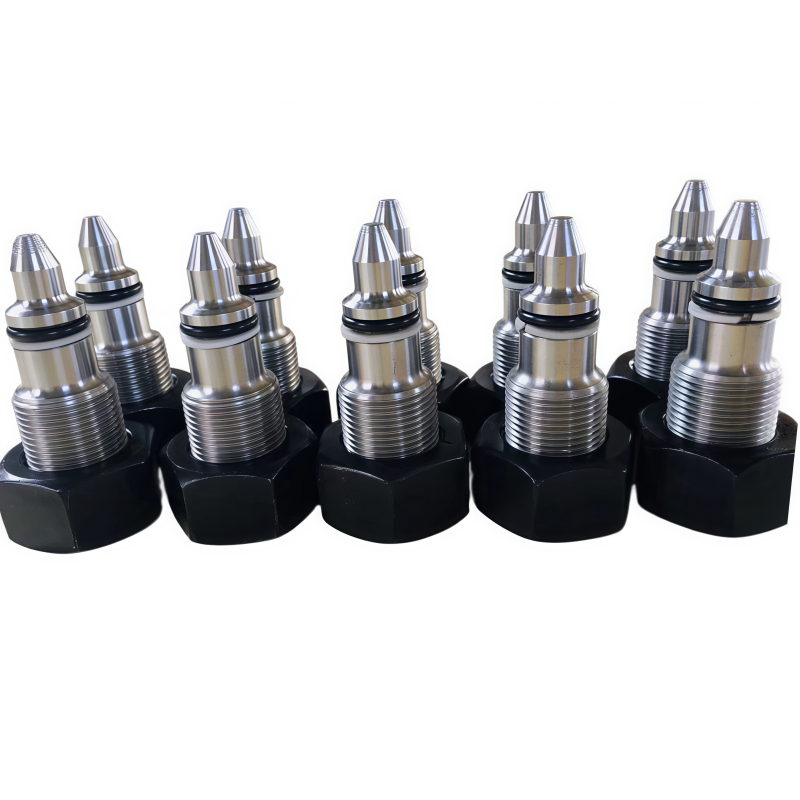

A: Remove the protective cap on the top N₂ charging valve and briefly depress the valve pin. If hydraulic oil spurts out along with gas, the internal elastomeric diaphragm has ruptured or perforated, allowing oil and gas to mix. The accumulator assembly must be disassembled and fitted with a new SLYM replacement diaphragm.

Q5: How do I choose between HNBR and Viton® replacement diaphragms?

A: Choose HNBR (Hydrogenated Nitrile) for general demolition and cold-weather operation, as it offers superior tear resistance and dynamic flexing at standard temperatures. Choose Viton® for continuous, heavy-duty quarry applications where hydraulic oil temperatures regularly exceed 100°C, as Viton® maintains elastomeric stability under extreme heat.
