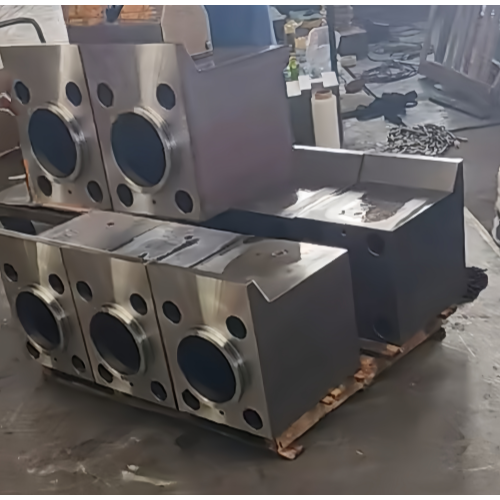

In a classic three-stage hydraulic breaker structure, the Back Head functions as the top structural cap and energy buffer of the power cell. Positioned directly above the main cylinder, it houses the compressed Nitrogen (N₂) gas cushion chamber, contains the gas charging valve assembly, and receives the top clamping load from the main through-bolts.
Manufactured from heat-treated 20CrMo forged alloy steel, SLYM Back Heads are engineered to withstand continuous high-cycle impact recoil. This guide outlines field troubleshooting, crack diagnostics, gas leakage prevention, and reassembly protocols for service engineers and fleet managers.
Structural Function in Three-Stage Breakers
Understanding the three-stage power cell chain is essential for accurate diagnostics:
Back Head (Top Section): Houses the N₂ gas chamber and charging valve; buffers piston recoil and secures through-bolts.
Main Cylinder (Middle Section): Houses the precision piston bore, main hydraulic oil passages, and control valve.
Front Head (Bottom Section): Houses the chisel wear bushings, lock pins, and working tool.
Do not mistake hydraulic oil leakage from the main cylinder for gas leakage from the Back Head.
Common Back Head Failure Modes & Root Cause Analysis
Nitrogen (N₂) Gas Pressure Loss
Symptom: Rapid decline in impact energy, sluggish strike rhythm, or frequent need to recharge nitrogen gas.
Root Cause: Worn gas valve O-rings, scratched internal chamber sealing surfaces, degraded diaphragm seals, or microscopic porosity in inferior non-forged metal heads.
Fatigue Cracking Around Through-Bolt Pockets & Oil Ports
Symptom: Visible oil or gas seepage around side-bolt counterbores or corner radiuses.
Root Cause: Asymmetric through-bolt tightening (uneven torque), intense blank firing, or severe side-loading forces transferred from prying with the chisel tool.
Damaged Gas Charging Valve Threads
Symptom: Inability to thread the charging hose kit securely or gas weeping directly from the valve body.
Root Cause: Cross-threading during field servicing, over-tightening the valve core, or dirt accumulation inside the charging port.
Mating Flange Distortion & Joint Oil Leaks
Symptom: Hydraulic oil weeping at the joint between the Back Head and Main Cylinder.
Root Cause: Loose through-bolts allowing the Back Head to lift during stroke cycles, causing seal extrusion and localized flange warping.
Step-by-Step Field Inspection Protocol
Step 1: Safe Gas Pressure Discharge
Before disassembling through-bolts, safely vent all compressed nitrogen gas from the Back Head using the official gas charging/discharging tool kit. Never attempt disassembly under gas pressure.
Step 2: Solvent Degreasing & Cleaning
Thoroughly wash the Back Head housing, gas chamber bore, valve threads, and lower mating flange using clean solvent.
Step 3: Gas Chamber Bore & Seal Landing Audit
Inspect the internal gas chamber walls and O-ring grooves for scratches, rust pitting, or burrs. Smooth out minor surface imperfections using ultra-fine oilstone.
Step 4: Non-Destructive Flaw Detection
Perform Dye Penetrant Testing (PT) around high-stress areas, including through-bolt pockets, thread roots, and radius corners, to check for hairline stress cracks.
Step 5: Mating Face Flatness Check
Inspect the bottom flange surface with a precision straightedge to verify no thermal or mechanical distortion exists across the joint face.
Reassembly & Torque Protocols
To ensure long-term gas tightness and prevent structural cracking during installation:
Fit New Gas Seals: Always replace gas chamber O-rings, backup rings, and valve seals during power cell overhaul. Coat new seals with clean hydraulic grease.
Thread Preparation: Clean all through-bolt threads and counterbores. Apply anti-seize lubricant to bolt threads.
Diagonal Star Torque Pattern: Tighten main through-bolts in 4 progressive stages (25% -> 50% -> 75% -> 100% of specified torque) using an alternating cross pattern. Uneven bolt tension creates severe bending stresses that can snap Back Head mounting flanges.
Summary Checklist for Maintenance Technicians
Inspection Focus | What to Look For | Action / Standard |
N2 Gas Chamber | Scratches, pitting, corrosion, burrs | Polish light burrs with oilstone; replace head if chamber wall is deeply gouged. |
Gas Valve Threads | Stripped threads, dirt, cross-threading | Clean with tap; replace valve core; use protective cap. |
Through-Bolt Pockets | Hairline cracks, uneven contact wear | Perform dye penetrant test; replace head immediately if cracked. |
Mating Joint Face | Warping, burrs, old gasket residue | Clean thoroughly; verify flatness; install new dynamic seal kit. |
Nitrogen Gas Charge | Correct pressure according to ambient temp | Check pressure using testing gauge; recharge to specified bar level. |
