Guide to Choosing Hydraulic Breaker Chisels: Moil, Wedge & Blunt

Selecting the correct hydraulic breaker chisel determines your job-site efficiency and wear rate. Matching the tool shape to the material prevents costly downtime. Engineered using an advanced forged alloy steel process, SLYM components ensure optimal energy transfer and structural integrity under extreme loads. Here is the ultimate technical guide to the four international standard chisel types.

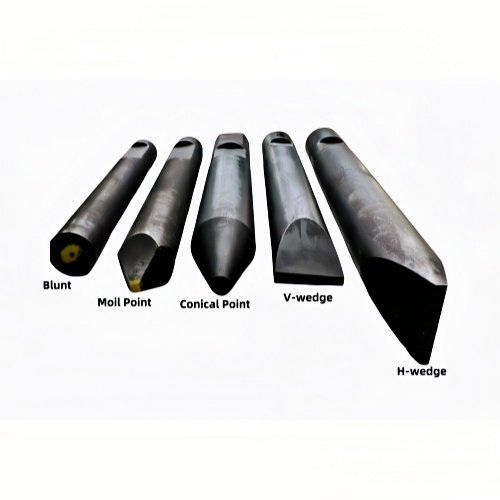

1. Moil Point: The Penetrator

The moil point features a four-sided pyramidal tip designed for high-point concentration. It pierces materials by forcing cracks outward.

Best For: Standard concrete demolition, trenching, slag removal, and general construction excavation. It is the universal standard tool for non-stratified rock.

2. Wedge/Chisel: The Splitter

The wedge/chisel tool features a cross-cut or parallel blade tip, operating like an axe. It provides directional cracking using splitting forces.

Best For: Trenching in stratified rock, cutting asphalt, slope trimming, and soft-to-medium rock excavation where directional precision is needed.

3. Blunt Tool: The Impactor

The blunt tool has a flat surface that delivers 100% of its impact energy directly into the rock without piercing it. Utilizing a specialized wear-resistant heat treatment, it shatters material via destructive shock waves.

Best For: Secondary rock breaking in quarries, crushing oversized granite or boulders, and slag destruction. It offers the highest wear resistance in extreme hardness.

4. Conical Point: The Heavy-Duty Piercer

Similar to the moil point but with a rounded cone profile, the conical tool eliminates sharp corners to distribute stress evenly, reducing premature snapping.

Best For: Hard, highly abrasive rock, heavy reinforced concrete demolition, and specialized tunneling.

Job-Site Precautions & Failure Prevention

To avoid catastrophic damage and maximize tool longevity, operators must strictly adhere to heavy machinery operational standards:

• Avoid Blank Firing: Never strike without adequate downward pressure. Blank firing causes severe internal piston damage and destructive tensile stress within the tool.

• Prevent Prying Damage: Do not use the chisel as a lever. Bending the tool while hammering causes severe prying damage, leading to immediate snapping.

• Monitor Front Bushing Wear: Check clearances regularly. Excessive front bushing wear causes the chisel to misalign, creating uneven piston impacts and accelerating fatigue failure.

• Frequent Greasing: Lubricate the tool shank every two hours of continuous operation with high-temperature molybdenum disulfide grease to reduce friction and minimize heat buildup.
