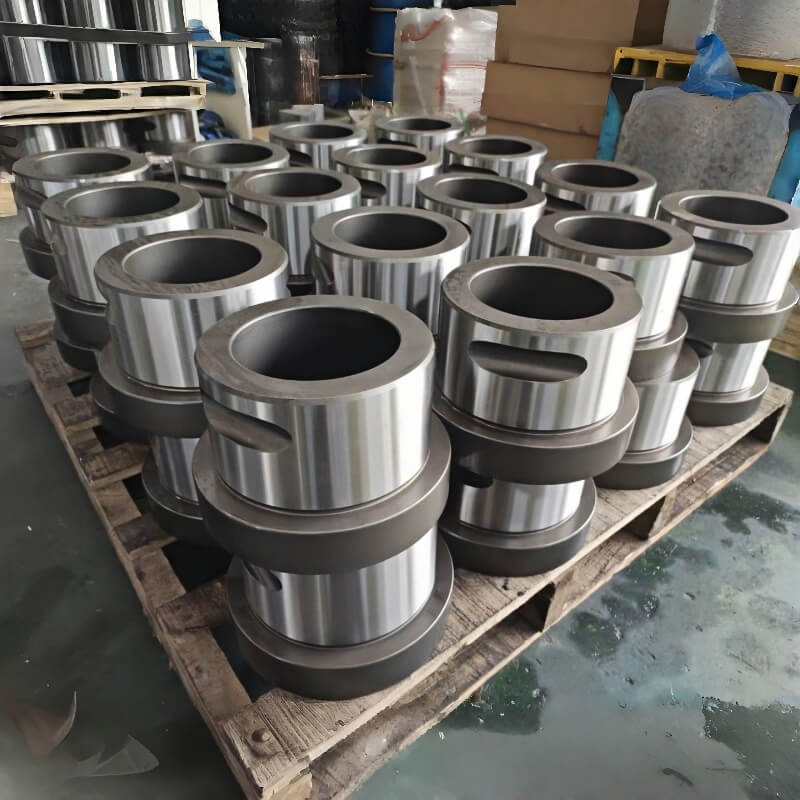

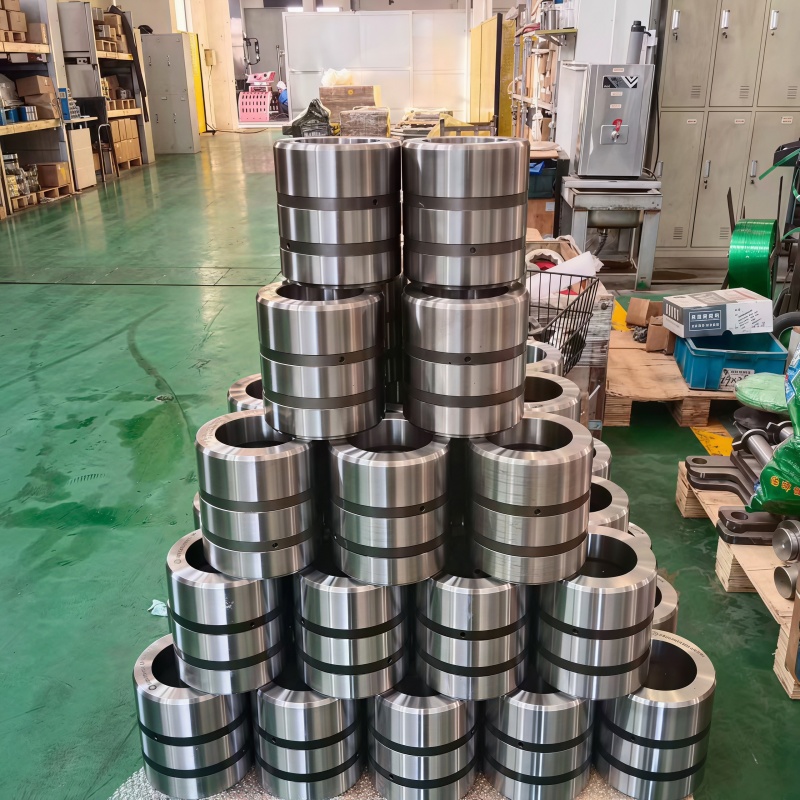

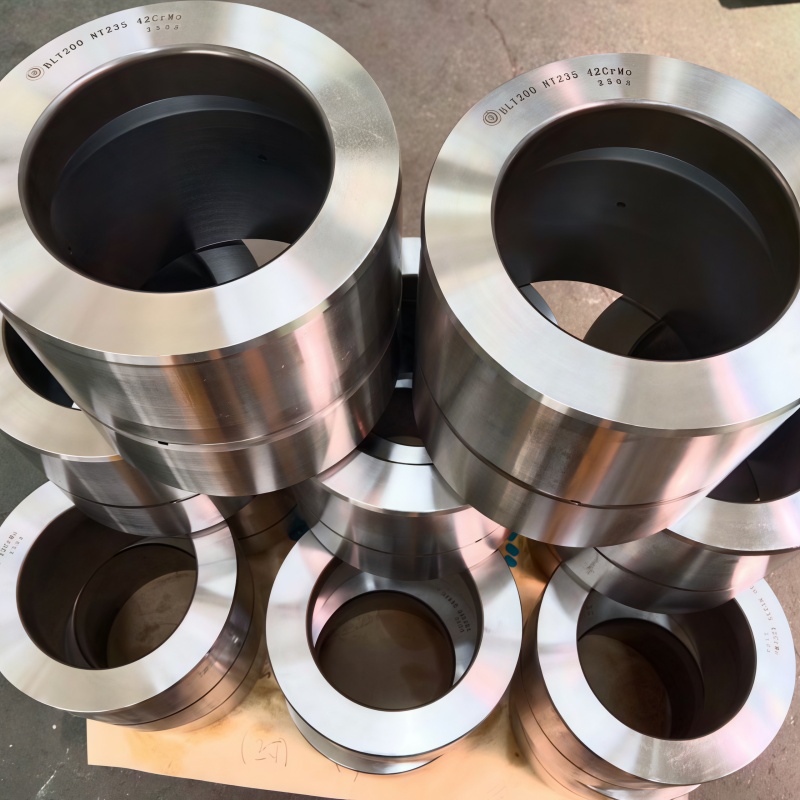

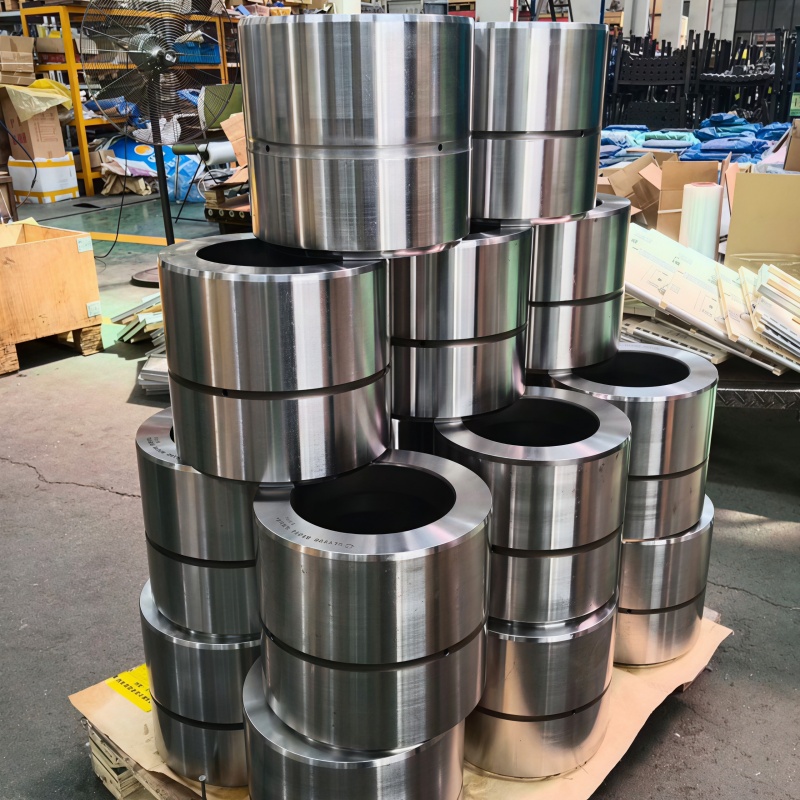

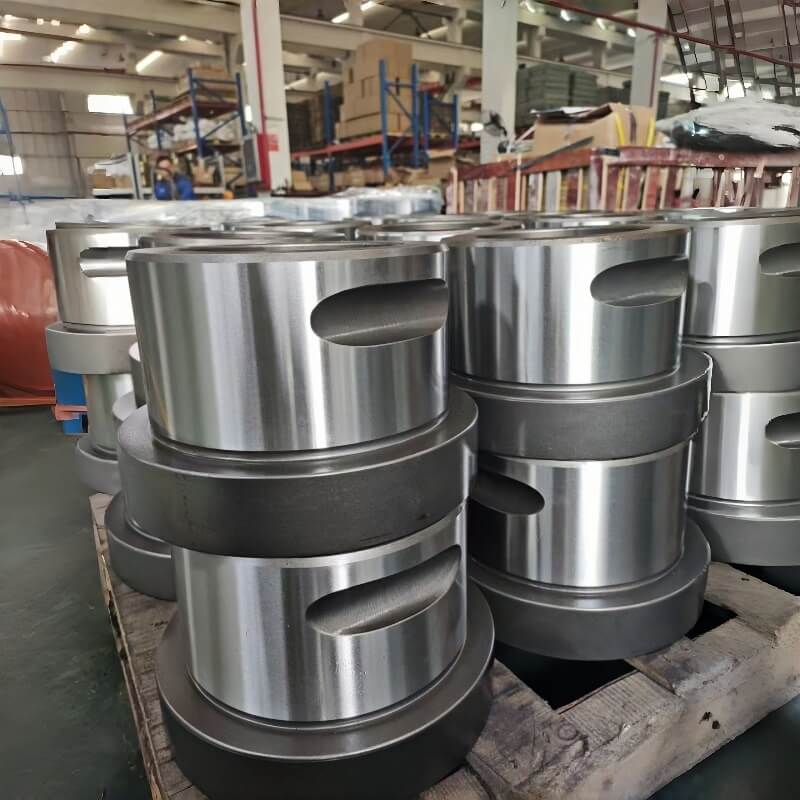

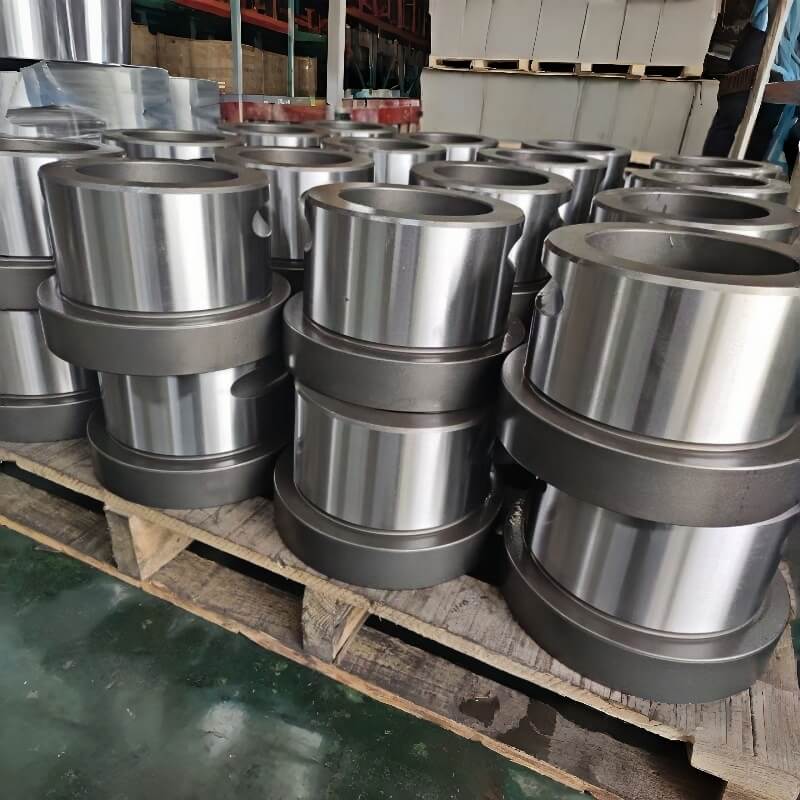

Hydraulic Breaker Front Cover Bush & Thrust Ring

Q1: How does a worn inner bushing cause catastrophic piston and cylinder scoring?

A: When the inner bushing wears beyond maximum allowable limits (typically exceeding 5 mm radial clearance), the chisel tool no longer stays aligned vertically. Under impact, the chisel tilts at an angle inside the housing. This off-axis tilt forces the piston to strike the chisel shank unevenly (off-axis contact), generating severe torsional stress across the piston face. Over time, this angular impact chips the piston striking edge and creates deep axial scratches (scoring) along the precision-honed cylinder bore, resulting in severe internal hydraulic oil bypass.

Q2: What causes galling and metal seizure between the chisel shank and the inner bushing?

A: Galling occurs when high-frequency friction creates localized temperatures above 200°C, causing micro-welding and metal transfer between the tool shank and the bushing wall. This is primarily caused by two maintenance errors:Using incorrect grease: Standard chassis grease lacks solid lubricants and breaks down under heat. Always use heavy-duty lithium grease containing 3% to 5% Molybdenum Disulfide (MoS₂).Greasing in horizontal/suspended positions: Greasing while the breaker is laying flat allows grease to enter the upper strike chamber rather than coating the bushing wear surface. Upon the next stroke, trapped grease causes a hydraulic lock that destroys dust seals and starves the lower bushing of lubrication.

Q3: Why do lower bushings deform into an oval shape ("egg-shaping"), and how can operators prevent it?

A: Ovalization occurs when excavator operators use the breaker chisel as a crowbar to pry or leverage embedded rock. Hydraulic rock breakers are designed strictly for perpendicular, downward impact (90° angle). Applying lateral leverage puts massive bending force against the bottom lip of the lower bushing and the top shoulder of the thrust ring, deforming the circular inner diameter into an oval. This binding traps the chisel, increases internal friction heat, and risks cracking the front head casting.

Q4: Why do inner bushings crack or flake (spalling) under heavy demolition work?

A: Bushing fracture and surface flaking are primarily driven by blank firing (activating the hammer without firm tool down-pressure against rock) and shock-fatigue micro-cracks. Blank firing forces the chisel to drop violently against the stop pins and bushing shoulders without rock resistance, transmitting un-dampened recoil shock directly through the bushing metallurgy. SLYM bushings combat brittle fracture by utilizing precision-forged high-density alloy steel with deep induction hardening on the wear surface, backed by a shock-absorbing ductile core.

Q5: What is the maximum wear limit, and when should breaker bushings be replaced?

A: Bushing clearance should be measured weekly using calipers or a feeler gauge. As a general rule, when the radial play between the chisel shank and the inner wear wall exceeds 5 mm (or manufacturer specs for smaller micro-breaker classes like SM40/TB20), the inner bushing must be replaced immediately. Replacing worn bushings promptly costs a fraction of a full cylinder re-hone or piston replacement. Additionally, inspect retaining pins daily for flat spots and rotate them 90° during reinstallation to ensure even wear distribution across the bushing pin slots.
