Breaker Piston Troubleshooting & HRC 75 Guide

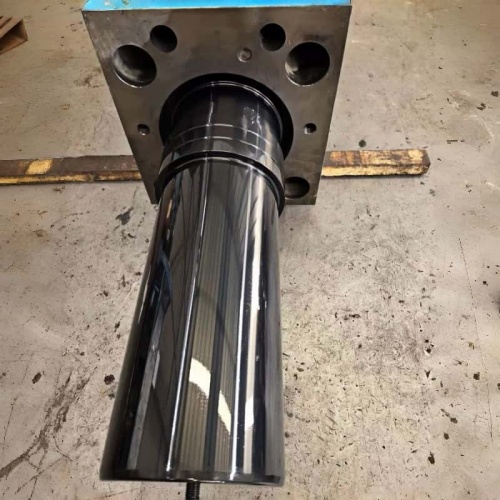

Operating under high frequency (400–800 BPM) and intense hydraulic pressure (160–180 bar), the hydraulic breaker piston is the primary kinetic transfer component in rock demolition. When a piston fails on-site, it rarely fails alone—a scuffed or seized piston frequently destroys the main cylinder and dynamic Cylinder Seal Kits.

Root Causes of On-Site Piston Failure

• Surface Scoring: Fine abrasive stone dust circulating in contaminated hydraulic oil scratches softer piston surfaces, leading to severe fluid bypassing and loss of impact force.

• Flaking & Chipping: High-frequency impact fatigue causes micro-cracks on the striking face, resulting in premature surface metal spalling.

• Thermal Seizure: When oil temperatures exceed 80°C, un-stabilized steel undergoes micro-thermal expansion, locking the piston inside the cylinder bore.

The SLYM Metallurgical Solution: HRC 75 Dual-Structure

Backed by over 10 years of heavy component manufacturing expertise, SLYM Machinery addresses these field issues at the metallurgical level:

1. HRC 75 Surface Hardness: Our precision surface-hardening process elevates the exterior layer to HRC 75. This ultra-hard armor stops fine particulates from scratching the wall and eliminates impact flaking.

2. Ductile Core (35–42 HRC): Forged from high-purity alloy steel (20CrNiMo), the tough core absorbs kinetic recoil without brittle fracturing.

3. -196°C Sub-Zero Cryogenic Treatment: Deep-freeze liquid nitrogen processing converts 100% of residual austenite into stable martensite, eliminating thermal swelling under extreme temperatures.

4. Mirror Honing (Ra≤0.1μm): Machined to micro-clearance tolerances (0.005mm–0.01mm) to minimize sliding friction heat.

Essential Maintenance Protocol

To maximize service life, replace hydraulic oil filters every 250 operating hours, check front bushing wear limits to prevent axial misalignment, and periodically inspect your Accumulator Diaphragms to maintain steady nitrogen backpressure.

SLYM supplies OEM-matching HRC 75 pistons for major global breaker series including Soosan, Furukawa, Krupp, and Montabert. Contact SLYM Machinery for technical support and factory-direct quotes.
