Chisel-Diameter-Matched Alloy Metallurgy
A piston's kinetic energy transfer must precisely match the breaker's impact class—rated by its Chisel Shank Diameter. Heavy-class hammers with large chisels (> 175 mm) transmit massive recoil shockwaves requiring high-nickel alloy steel with deep core toughness. Compact breakers (< 100 mm chisel) require high-density bearing alloys to withstand rapid cyclic motion without sliding wear.
SLYM Machinery implements a Chisel-Diameter-Matched Alloy Matrix to maximize fatigue life, energy transfer, and core ductility across all hammer models:
| Breaker Chisel Diameter Rating | Target Carrier Class | Standard SLYM Piston Alloy Configuration | Metallurgical Engineering Rationale |
| Heavy Mining Class(> 175 mm Chisel Dia.) | 30 – 100+ Ton(Quarrying & Mining) | 616V / 20Cr2Ni4A | High nickel-chromium formulation providing deep carbon penetration, exceptional core ductility (35–42 HRC), and shock wave dissipation under extreme kinetic impacts. |
| Medium Demolition Class(135 – 165 mm Chisel Dia.) | 18 – 30 Ton(Civil Infrastructure) | 9Cr2NiMoV / 20Cr2Ni4A | Formulated for high-frequency loading; delivers high structural density, fatigue strength, and resistance to surface micro-cracking. |
| Compact Utility Class(< 100 mm Chisel Dia.) | 0.8 – 15 Ton(Mini & Micro Diggers) | GCr15 / 40CrNiMo | High-density bearing-grade and nickel-moly steel optimized for high-frequency speeds (up to 1200 BPM) with low sliding friction. |
Note: Custom metallurgical formulations (e.g., specialized alloy grades for sub-zero arctic mining or underwater demolition) are available upon technical pre-production coordination with SLYM engineers.
On-Site Failure Prevention & Troubleshooting Matrix
| Field Failure Mode | Primary Root Cause | SLYM Engineering & Operational Solution |
| Piston Scoring & Scuffing | Abrasive stone dust in contaminated hydraulic oil or excessive bushing clearance causing axial tilting. | HRC 75 Surface Layer: Ultra-hard exterior prevents scratches from fine particulates. Replace front bushings when radial play exceeds limits. |
| Striking Face Chipping & Spalling | Blank firing, off-axis angular contact with the chisel, or un-relieved internal thermal stress. | Ductile Core + Cryogenic Relief: High-density core absorbs kinetic shock, while cryogenic stress-relief prevents micro-cracking. Avoid blank firing. |
| Thermal Seizure & Sticking | Oil temperatures exceeding 80°C cause un-stabilized steel to expand inside the cylinder. | Cryogenic Stabilization: Eliminates thermal growth. Maintain carrier oil cooler performance and verify proper nitrogen pre-charge. |
| Hydraulic Oil Bypassing | Worn piston outer diameter or degraded dynamic oil seals due to surface rough spots. | Ra ≤ 0.1 μm Polish: Ultra-smooth finish reduces friction heat, preserving seal lip flexibility and preventing oil bypass. |

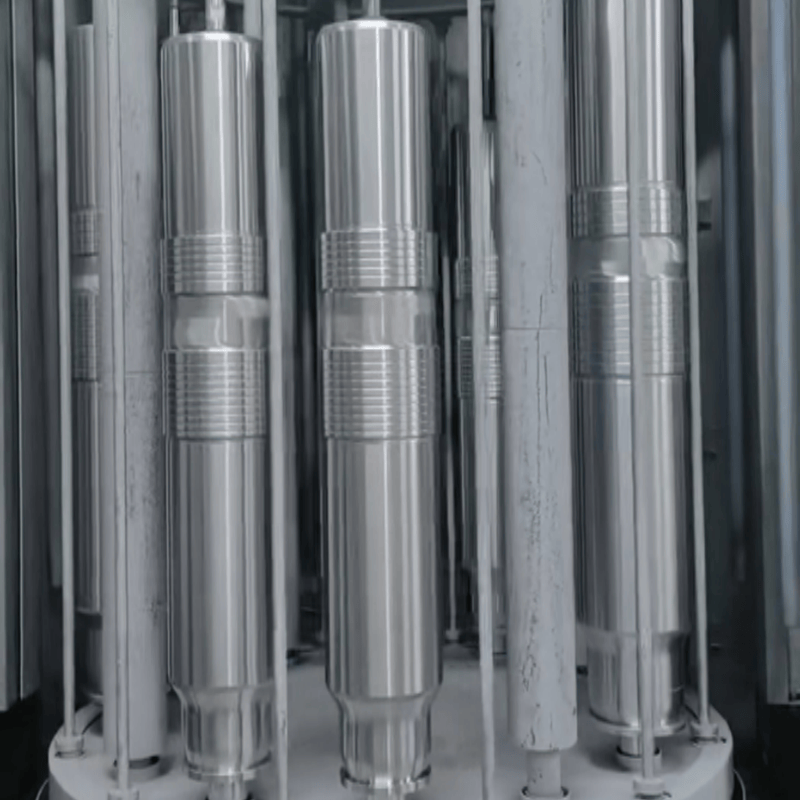

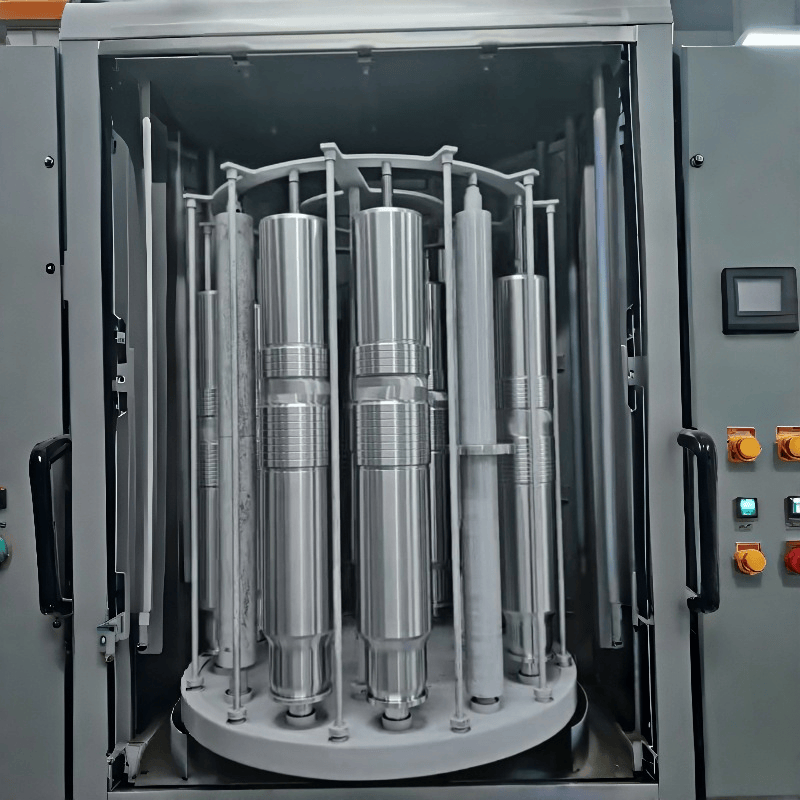

Precision Surface Hardening & Thermal Stabilization
3D Directional Forging: Raw steel billets undergo vacuum degassing and multi-axis forging to align grain fibers parallel to the impact axis, maximizing tensile resistance.
Vacuum Carburizing & Quenching: Computer-controlled thermal cycles produce a tough, shock-absorbing core (35–42 HRC) surrounded by an HRC 75 wear-resistant surface armor.
-196°C Sub-Zero Cryogenic Treatment: Deep-freeze liquid nitrogen processing transforms 100% of residual austenite into stable martensite. This fixes internal micro-dimensions, preventing the piston from expanding and seizing inside the cylinder during high-temperature operation (> 80°C).
Micro-Finish Grinding: Outer diameter dimensions are held to tight tolerances (0.005–0.01 mm) with a polished mirror finish (Ra ≤ 0.1 μm) to preserve cylinder wall integrity.
