Hydraulic Breaker Power Cell Troubleshooting & Maintenance Guide

The power cell (bare breaker assembly) is the core hydraulic impact engine of a breaker, comprising three precision-machined forged steel sections: the Front Head, Cylinder, and Back Head.

Major Power Cell Failure Modes & Root Causes

1. Piston & Cylinder Scoring (Cylinder Scratching):

• Excessive Hydraulic Oil Temperature:

  Hydraulic oil temperature above the manufacturer's specified operating range can reduce lubrication effectiveness and accelerate deterioration of seals and other components. Check oil level, flow, cooler performance, filter condition and hydraulic-system settings when overheating occurs.

• Possible Consequences:

  Internal leakage, reduced impact performance, accelerated seal wear, abnormal friction and, in severe cases, internal component damage or seizure.

2. Through-Bolt (Side Bolt) Fracture & Thread Stripping:

• Possible Causes: Uneven or incorrect bolt tension, repeated loosening, bolt fatigue, damaged threads, blank firing and other abnormal operating loads.

• Consequences: Structural misalignments across the front head, cylinder, and back head, causing oil leaks and internal damage.

3. Nitrogen Gas Chamber Leakage:

• Possible Causes:

  Damaged charging-valve seals, deteriorated O-rings, damaged sealing components, incorrect assembly or structural damage around the gas chamber.

• Possible Symptoms:

  Reduced impact performance, abnormal striking behaviour or loss of gas pressure.

Practical Troubleshooting & Maintenance Protocol

• Hydraulic Oil Cleanliness: Maintain hydraulic fluid cleanliness according to the carrier and hydraulic breaker manufacturer's requirements. Where a cleanliness target is specified, report and monitor the fluid cleanliness using the applicable ISO 4406 code.

• Through-Bolt and Power Cell Inspection

  Inspect the through-bolts and power-cell joints regularly for loosening, oil leakage, abnormal gaps or visible damage. Check torque according to the applicable service procedure for the specific hydraulic breaker model, using a calibrated torque wrench where required.

• Proper Nitrogen Pressure Management: Check nitrogen pressure according to the maintenance schedule and charging procedure specified for the particular hydraulic breaker model. Never over-charge beyond manufacturer specs. Incorrect nitrogen pressure can affect the breaker's impact characteristics and internal loading. Always charge the accumulator or gas chamber to the pressure specified for the particular model.

• Avoid Blank Firing & Prying: Instruct operators never to idle fire or use the breaker chisel as a crowbar. Excessive side loading or using the working tool as a pry bar can increase abnormal loads on the tool-guidance system and contribute to uneven wear of the bushings, tool and other internal components.

Hydraulic Breaker Power Cell Inspection Workflow

Step 1 — Stop and Isolate the Breaker

Stop the breaker and isolate the carrier according to the applicable safety procedure.

Step 2 — Check External Condition

Inspect:

• Oil leakage

• Body gaps

• Through-bolt condition

• Back-head condition

• Hose connections

• Abnormal cracks or deformation

Step 3 — Check Operating Symptoms

Record:

• Weak impact

• Irregular striking

• Excessive vibration

• Abnormal noise

• Gas-pressure loss

• Hydraulic oil leakage

Step 4 — Check Related Components

Depending on the symptom, inspect:

• Piston

• Cylinder

• Front head

• Bushings

• Seals

• Through-bolts

• Accumulator

• Nitrogen chamber

Step 5 — Compare With Model-Specific Requirements

Use the maintenance manual, engineering drawing or applicable service limits for the specific breaker model.

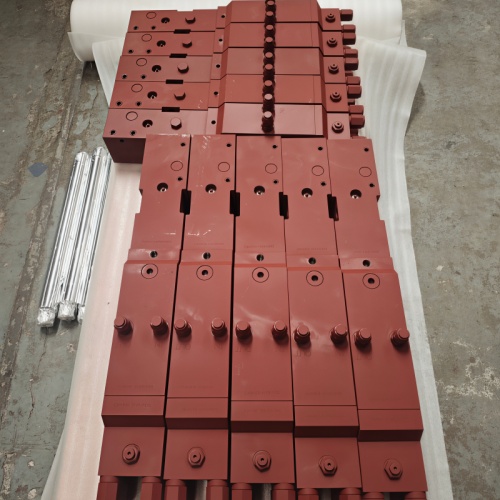

SLYM Hydraulic Breaker Power Cell Components

SLYM MACHINERY supplies hydraulic breaker power-cell components and complete breaker assemblies for selected models and applications. Material selection, heat treatment, machining and dimensional requirements are determined according to the applicable product specification.

For model-specific technical support, provide the breaker model, component photos, part numbers or dimensions. Our team can help identify the relevant power-cell component and replacement options.
