Hydraulic Breaker Through Bolt Care Guide

Through bolts (tie rods) hold the upper, middle, and lower breaker cylinders together under continuous high-tension clamping force. When a through bolt fails, the entire power cell loses alignment, causing immediate hydraulic oil blowouts and expensive internal component damage.

Primary Causes of Through Bolt Failure

1. Blank Firing (Dry Firing): Striking without tool down-pressure forces the piston to hit stop pins directly, transmitting un-dampened recoil shock waves into the through bolts.

2. Prying and Side Loading: Using the breaker chisel as a lever creates lateral bending forces that bend tie rods and distort cylinder walls.

3. Unequal Torquing: Tightening bolts unevenly warps the cylinder bore into an oval shape, causing piston friction, surface scoring, and seizure.

4. Machine-Cut Threads: Cheaper replacement bolts with cut threads contain microscopic stress risers that fracture rapidly under cyclic loading.

Step-by-Step Maintenance Protocol

1. Enforce Diagonal Torque Sequence: Always tighten through bolts in a crosswise pattern (1 → 3 → 2 → 4) using a calibrated torque wrench. Apply torque incrementally (30% → 60% → 100%) to maintain uniform axial clamping force without distorting the cylinder bore.

2. Apply Anti-Seize Paste: Coat threads with high-temperature Molybdenum Disulfide (MoS₂) paste prior to assembly to prevent thread galling and seizure under high pre-load pressure.

3. Never Operate with a Missing Bolt: If one bolt snaps, cease operation immediately. Operating on three bolts overloads the remaining tie rods, leading to catastrophic power cell separation.

4. Replace in Full Sets: When replacing worn or stretched tie rods, replace all four bolts simultaneously to ensure identical material yield strength and elastic stretch across the power cell.

SLYM Precision Metallurgy

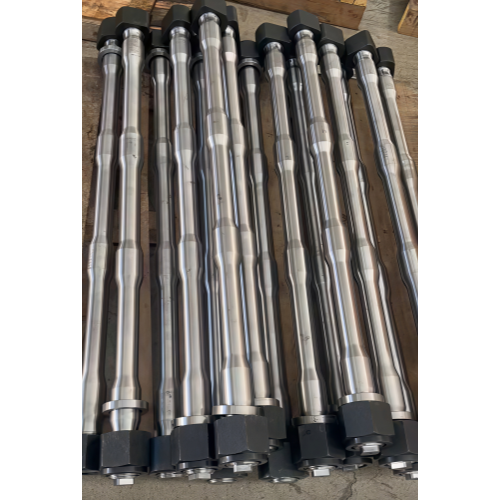

SLYM manufactures replacement through bolts forged from 42CrMo4 and 40CrNiMoA alloy steel. Featuring cold-rolled threads and stress-relieved head transition radii, SLYM tie rods resist shock-fatigue cracking under heavy mining conditions.
