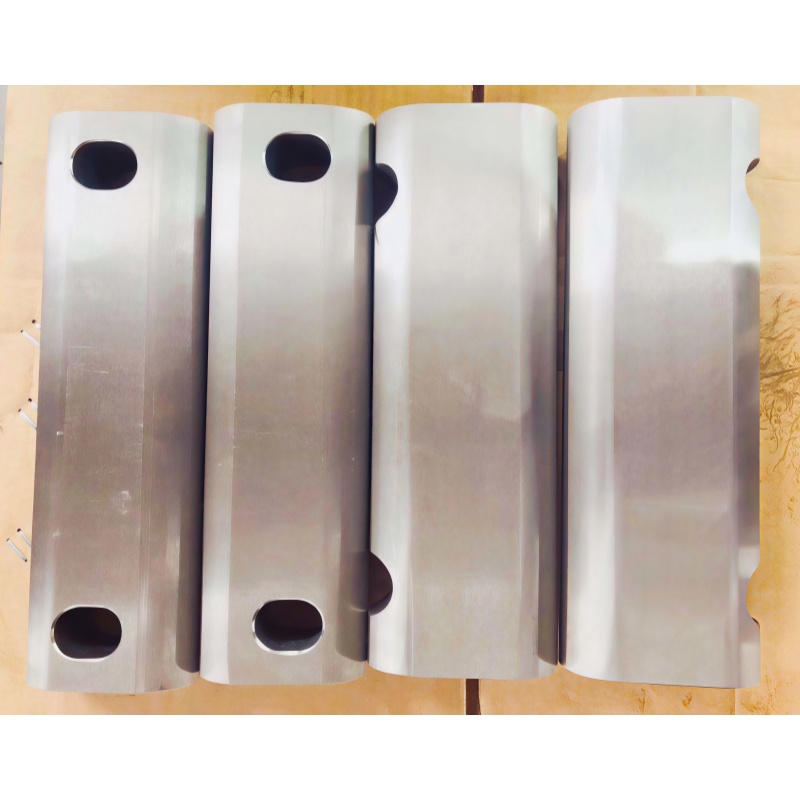

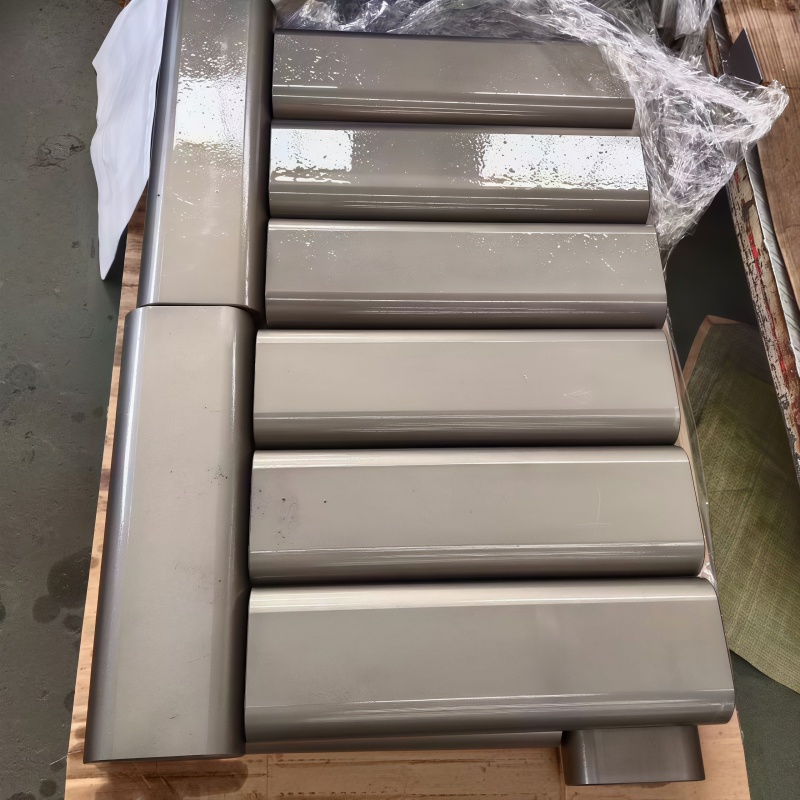

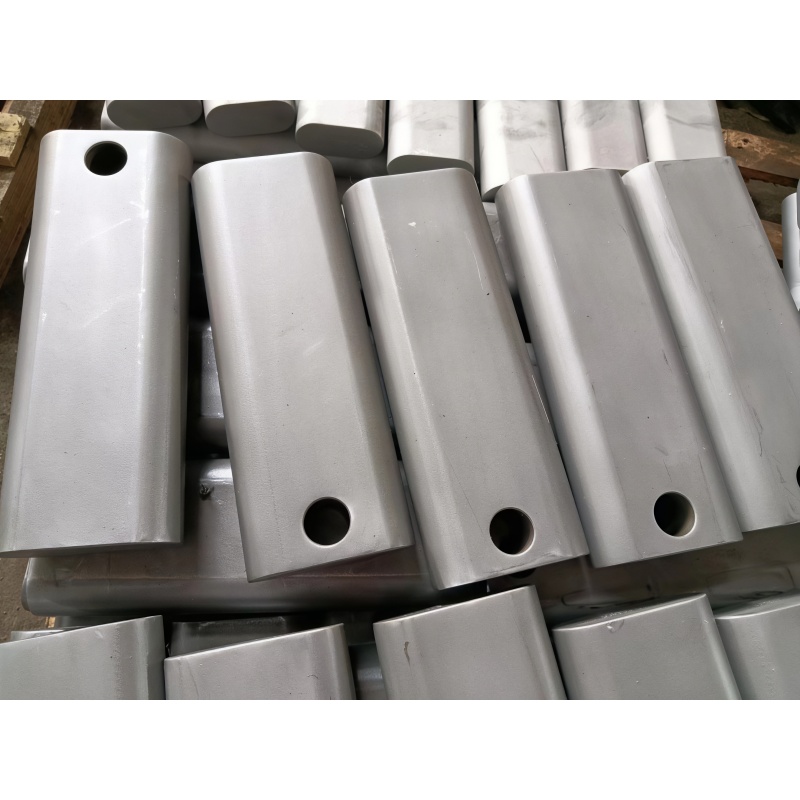

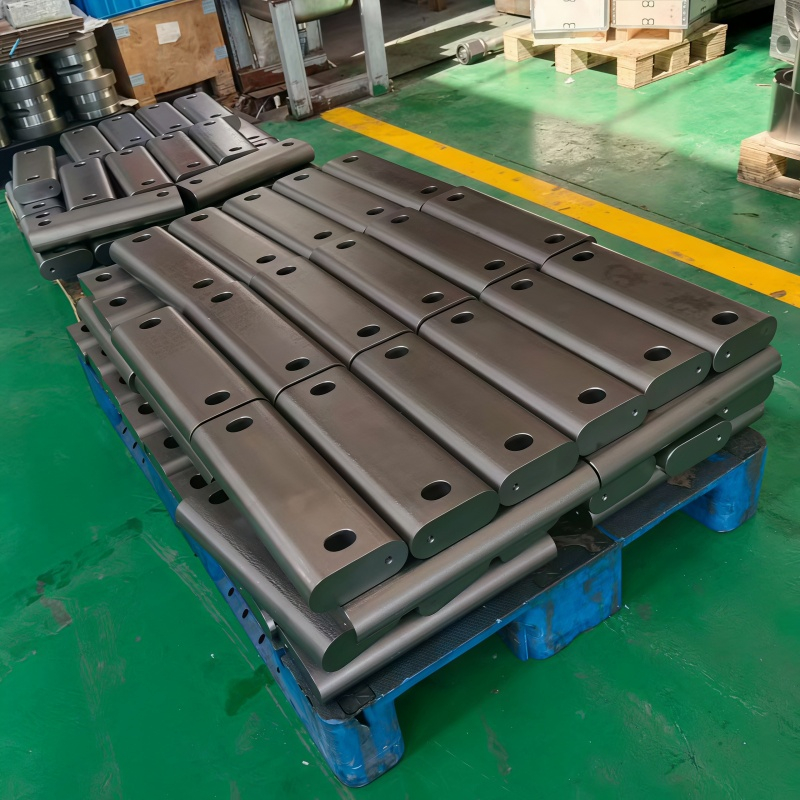

Hydraulic Breaker Tool Retaining Pins & Chisel Pins

Q1: Why do tool retaining pins become stuck inside the front head and impossible to hammer out?

A: Pin seizure is caused by pin mushrooming (plastic deformation) or metal-on-metal galling. When a breaker is subjected to frequent blank firing or off-center impact, the soft core of a low-quality pin expands sideways under compression, creating a bulbous end inside the pin bore. SLYM pins utilize deep-case carburizing (HRC 58–62) to prevent surface crushing and deformation.

Q2: How does a worn chisel pin cause expensive piston and cylinder scoring?

A: When the flat contact face of a chisel pin wears down beyond service limits, the chisel wobbles sideways inside the front head. When the piston strikes a tilted tool, the impact force transfers unevenly across the piston face, driving the piston sideways against the cylinder wall. This creates severe axial scoring, oil bypass, and piston destruction.

Q3: What is the main cause of retaining pin shear breakage?

A: Retaining pin shear is primarily caused by blank firing (dry firing) or prying material with the tool bit. Blank firing forces the chisel notch to slam directly into the retaining pin with full hydraulic impact energy, creating localized shear forces that snap un-carburized or brittle pins.

Q4: What is the difference between a Tool Retaining Pin (Chisel Pin) and a Bushing Pin?

A: A Tool Retaining Pin (Chisel Pin ) is a larger pin featuring a flat or notched side designed to lock the chisel tool in place. A Bushing Pin is a smaller cylindrical pin that secures the upper and lower bushings inside the front head to prevent them from rotating or shifting vertically.

Q5: How often should I inspect and rotate my tool retaining pins?

A: Inspect tool retaining pins weekly or every 50 operating hours. Rotate the pins 180° periodically to distribute contact wear evenly across both sides of the pin profile. Replace the pins immediately if flat-spot wear exceeds 3 mm or if surface cracking is visible.
