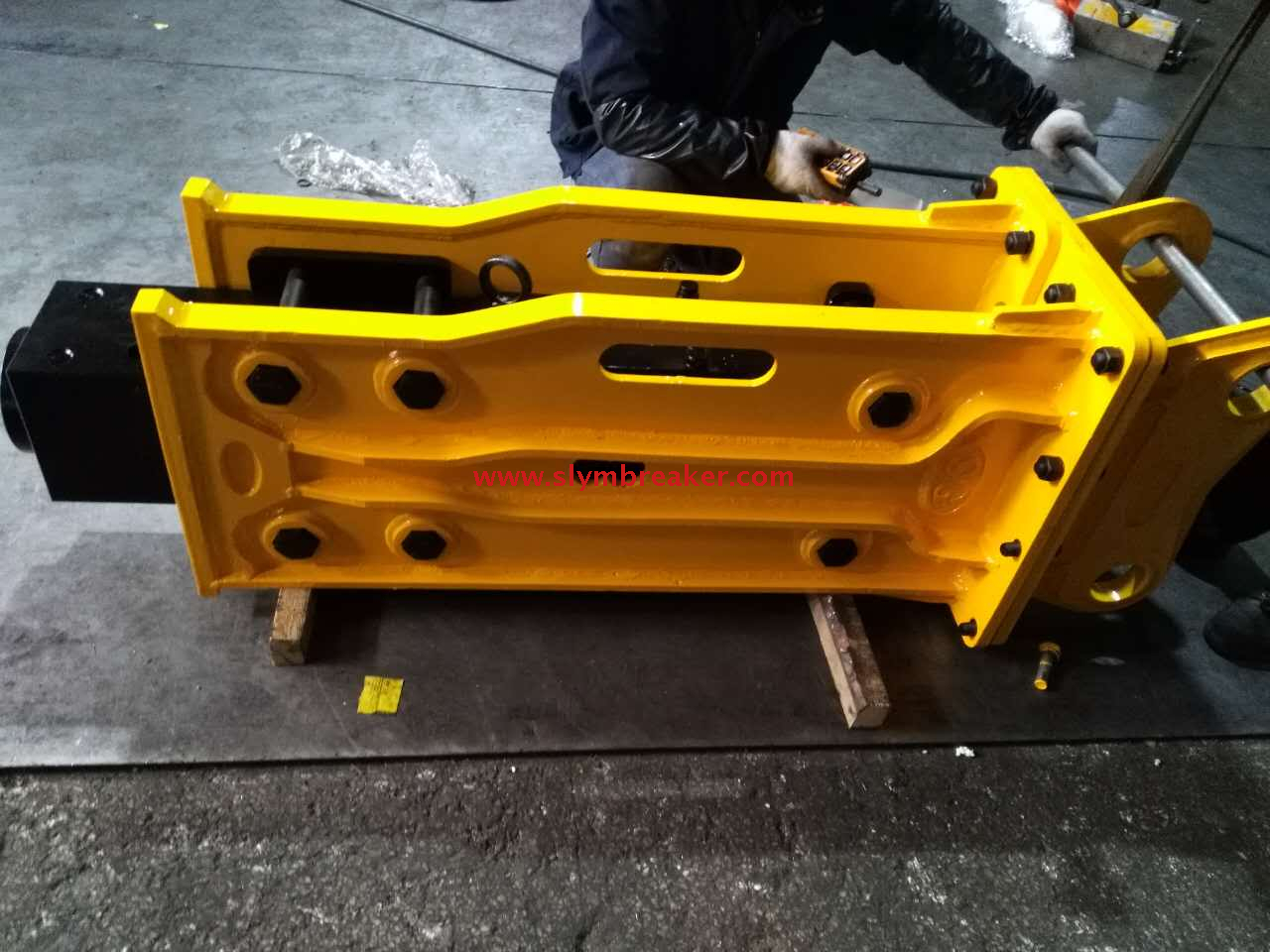

komatsu pc60 hydraulic breaker hammers for excavator

Quantity:



Inquire Add to Basket

Model:
TB50
Brand:
TANK
Productivity:
5000sets/year
Origin:
China
Packing:
Plywood case
MOQ:
1 PC
Delivery Term:
within 5-10days after the payment recepit
Price Term:
FOB, CIF, C&F
Payment Term:
T/T

Top Type Breakers

Easy control and easy position make it more convenience to excavation work

Without side-weight, reducing the rate of chisel breakage

Longer total length and heavier total-weight

Light-Duty Hydraulic Breakers

Prolonged life

Steady performance

Reliable after-sales service

Our Service:
1) Any your inquiry related our products will be replied with 24 hours
2) We can also provide OEM business
3) Warranty: 1 year and For free techinical support all the time.
4) How to get the correct information of goods? Pls let us know the following news:
a. Your excavator model
b. The operation weigt of your excavator
c. The quantity of your order
d. Your destination port
hydraulic hammer excavator

1. Main Valve

1) Easy to repair
2) To prevent the cylinder deformation

2. Piston

1) Piston stroke, increase blow f orce
2) Special damping system, reduce the recoil force
3) Precision of piston and cylinder is further improved, reduce resistance, improve efficiency

3. The high quality of chisel

1). Alloy steel raw material selection.
2) The depth of heat high precision processing
3) Heat resistance, wear resistance strong

4. The whole box shell

1) The durable welding structure, chisel protection more perfect and more stable
2) The seal is complete, eff ective dust control measures to improve the durability of structure, protect against cylinder damage and the bushings premature wear
3) The big plate with light weight, simple structure ,convenient operation and repair

5. Nitrogen chamber

1) Structure more compact
2) Ensure the reduction of the nitrogen chamber volume of the nitrogen pressure under the condition of invariable, the hammer is more energy saving

Applicable Field:

Mining---Mining, Second time Breaking

Metallurgy---Clearing Slag, Demolition of furnace and foundation

Road---Repairing, Breaking, Foundation Work

Railway---Tunneling, Demolition of Bridge

Construction---Demolition of building and reinforced concrete

Ship Repairing---Clearing clam and trust from the hull.

Others---Breaking frozen mud

Applicable Excavator:
VOLVO, HITACHI, KATO, KOMATSU, KOBELCO, CAT, HYUNDAI, SUMITOMO,DOOSAN AND SO ON.

Items	Unit	TB50
Top Type	kg/1bs	250/550
Operating Pressure	kgf/cm² psi	100~130 1,422~1,848
Oil Capacity	1/min gpm	30~50 7.9~13.2
Blows	bpm	450~750
Impact Energy	ft 1bs Joules	500 680
Chisel Diameter	mm inch	68 2.6
Hose Size	mm inch	13 PF1/2
Suitable Excavator	ton 1b m³ ft³	4.8~8.0 8,818~17,636 0.15~0.25 5.29~8.82
