mini digger quick hitch/coupler for 5ton excavator

Availability:
Quantity:
Inquire Add to Basket

  • SLK06

  • SLYM

  • China

  • 1PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5days

  • 12month

  • available

  • 9-19ton

  Characteristics of excavator attacgment quick hitch:
  1. Use material of high hardness; Suitable for different excavator of 2-45ton.
  2. Use security device with hydraulic control valve to ensure the safety.

  Our Service:
 1)  Any your inquiry related our products will be replied with 24 hours
 2)  We can also provide OEM business
 3)  Warranty: 1 year and For free techinical support all the time.
 4) How to get the correct information of goods? Pls let us know the following news:


   a. Your excavator model
   b. The operation weigt of your excavator
   c. The quantity of your order
   d. Your destination port

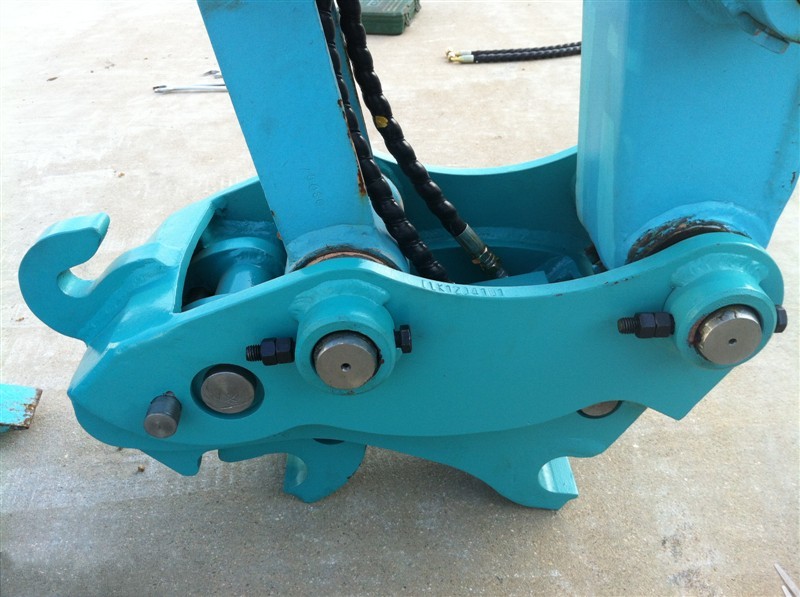

      The main structure of excavator quick coupler and accessories:
     SLKmin-110快速连接器_meitu_1
      1)  Body
     2) Cylinder
     3) Hitch
     4) Hitch Pin
     5) Safety Pin
     6) R-type Stop Ring
     7) Cyliner Pin
     8) Snap Ring
     9) Frame Pin
     10) Bracket Pin
     11) Safety Bar
     12) Latch Of Safety
     13) Hose
     14) Check Valve
     15) Hook

  Suitable excavator:
型号 品牌_meitu_1_conew1

quick hitch description22031618350

       Item        Unit        SLK06
       Overall length(L)        mm        765
       Overall Height(H)        mm        388
       Overall Width(W)        mm        353-436
       Pin To Pin Center Distance(A1)        mm        380-420
       Forearm Open Width(W1)        mm        232-315
       Retractable Distance Of Oil Cylinder(A2)        mm        340-486
       Top To Bottom Pin Distance(H1)        mm        220
       Pin Diameter        mm        50-70
       Weight        kg        120-130
       Working Pressure        kg/cm2        40-380
       Required Oil Flow        l/min        10-20
       Suitable Excavator        ton        9-19
Application of hydraulic quick hitch:
1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.
2. Can change the accessories without disassembling the pin and axle, thus realize faster installation

application of quick hitch202203161
