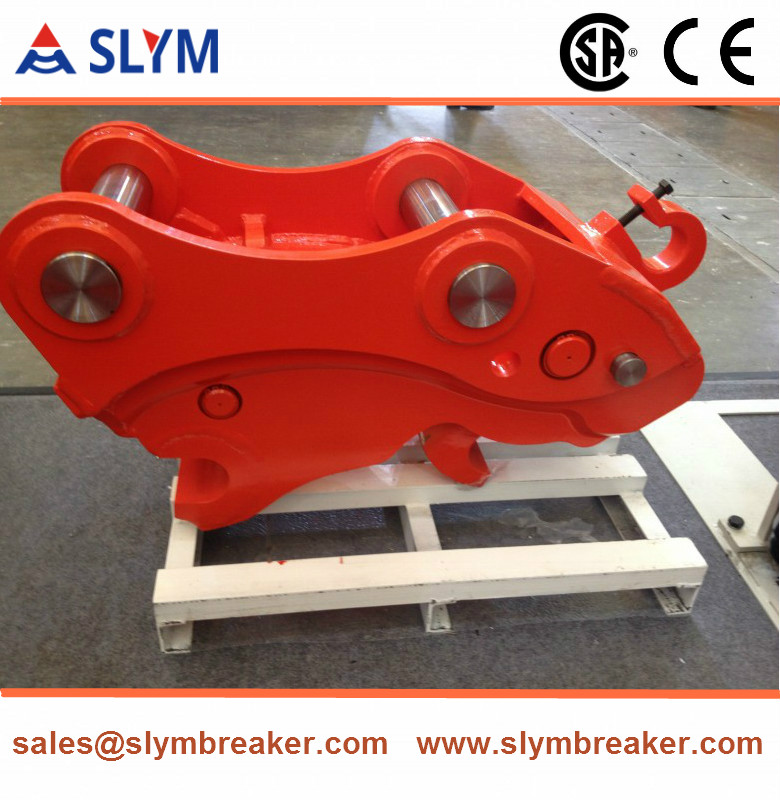

mini hydraulic quick Title Hitch Excavator Quick Attachment

Availability:
Quantity:
Inquire Add to Basket

  • SLK02

  • SLYM

  • China

  • 1PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5days

  • 12month

  • available

  • 1.5-4ton


    Characteristics of excavator quick hitch:


    1. Use material of high hardness; Suitable for different excavator of 2-45ton.

    2.  Use security device with hydraulic control valve to ensure the safety.

hydraulic quick hitch details


    Our Service:

   1)  Any your inquiry related our products will be replied with 24 hours

   2)  We can also provide OEM business

   3)  Warranty: 1 year and For free techinical support all the time.

   4) How to get the correct information of goods? Pls let us know the following news:

     a. Your excavator model

     b. The operation weigt of your excavator

     c. The quantity of your order

     d. Your destination port



    Suitable excavator:
  型号 品牌_meitu_1_conew1

quick hitch description22031618350

       Item        Unit        SLK02
       Overall length(L)        mm        388
       Overall Height(H)        mm        246
       Overall Width(W)        mm        175
       Pin To Pin Center Distance(A1)        mm        80-150
       Forearm Open Width(W1)        mm        80-140
       Retractable Distance Of Oil Cylinder(A2)        mm        170-206
       Top To Bottom Pin Distance(H1)        mm        159
       Pin Diameter(D)        mm        25-40
       Weight        kg        25
       Working Pressure        kg/cm2        40-380
       Required Oil Flow        l/min        10-20
       Suitable Excavator        ton        1.5-4

Application of excavator attachment quick hitch:


1. Can be used on excavator to change the accessories ( such as bucket, breaker, shear, etc) easily and quickly, which has enlarged the use scope of the excavators and saved a lot of time.


2. Can change the accessories without disassembling the pin and axle, thus realize faster installation



application of quick hitch202203161
