SLYM Premium Forged Steel Hydraulic Breaker Chisels & Tools

Unplanned downtime due to tool breakage is the single greatest hidden cost on high-intensity demolition and mining sites. When a chisel snaps or wears out prematurely, heavy machinery sits idle, projects stall, and operational margins shrink. SLYM Machinery engineers premium replacement hydraulic breaker chisels designed specifically to withstand relentless structural stress and deliver maximum impact energy transfer.

By utilizing an advanced forged alloy steel process combined with custom-tailored manufacturing standards, our tools are built to survive the harshest environments—from continuous quarrying in granite mines to heavy-duty municipal excavation on metro construction projects. Our internal technical experts selectively choose high-grade raw materials for our forged steel chisels to guarantee peak performance where conventional tools fail. We eliminate the middleman to offer global heavy equipment distributors, procurement managers, and fleet operators an unbeatable factory-direct wholesale solution.

Do not let low-grade wear parts compromise your job-site productivity. Contact the SLYM team today to receive a comprehensive, factory-direct wholesale quote within 24 hours.
Availability:
Quantity:
Inquire Add to Basket

  • all model

  • SLYM

  • China

  • 10PC

  • T/T, L/C, Western Union

  • standard exporting package

  • 3-5 working days

  • available

 Advanced Craftsmanship & Materials

  • Premium Forged Alloy Steel: Every tool begins as select, high-grade alloy steel, meticulously chosen by our team to provide superior core toughness and resistance to high-frequency fatigue.

  • Specialized Wear-Resistant Heat Treatment: Our proprietary, specialized wear-resistant heat treatment optimizes the grain structure of the steel. This creates a highly durable outer shell that maintains exceptional structural integrity under constant impact without becoming brittle.

  • Precise Machining Standards: Machined to exact OEM tolerances, ensuring a seamless, high-precision fit within the front bushing of your breaker, which drastically minimizes irregular housing wear and protects the strike face of the piston.


International Standard Head Types For Diverse Workstations

  • Moil Point: Engineered with a sharp, four-sided pyramidal tip to deliver extreme point penetration. Ideal for standard concrete demolition, slag removal, non-stratified rock breaking, and general construction excavation.

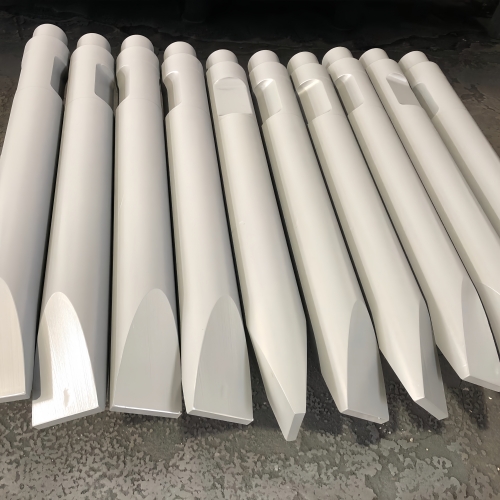

  • Wedge/Chisel: Features a directional blade tip acting like an axe to split materials along natural fault lines. Optimal for cutting asphalt, trenching in stratified rock, and performing precise slope trimming.

  • Blunt Tool: Features a heavy-duty flat profile designed to transmit massive, destructive shock waves directly into material without piercing it. Perfect for secondary crushing in quarries, boulder breaking, and slag destruction.

  • Conical Point: Built with a rounded, smooth cone profile that evenly distributes operational stress. This eliminates sharp internal corners, substantially lowering the risk of premature snapping in highly abrasive rock.


Global Compatibility & Machine Matching Logic

SLYM Machinery manufactures precision-fit replacement chisels compatible with major international hydraulic breaker brands and models. Whether outfitting a flagship heavy-duty silent breaker like the SLYM SM245 or finding the perfect match for global standard flagships—such as the Furukawa HB30G / SLYM SM150/30G series—our technical specialists ensure perfect structural alignment and excavator matching logic for carriers ranging from mini-excavators up to heavy mining units.

  镐钎_rod

       MONTABERT Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（m）        Weight（kg）
       蒙特贝MONTABERT        BRH40        45        500        6
       BRH75/76/90/91        60        550        8
       BRH125        80        700        21
       BRH250/270        95        850        40
       BRH501/570        114        1000        76
       BRH620        114        1000        71
       BRH625/900        118        1000        74
       BRH750        120        1100        86
       BRH1100        140        1350        135
       BRP30        40        410        4
       BRP45/50        50        430        6
       BRP60/70        50        510        7
       BRP85/100        62        620        12
       BRP130/150        75        740        21
       BRV32        122        1100        90
       BRV43        150        1300        160
       BRV45        150        1300        160
       BRV52        162        1350        192
       BRV53        170        1400        230
       BRV55        170        1500        245
       BRV1600        140        1250        140
       GB Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       工兵GB        GB1T        58        580        10
       GB2T        70        700        19
       GB3T        75        750        23
       GB4T        90        902        40
       GB5T        100        1055        58
       GB6T        125        1181        102
       GB8T        140        1248        136
       GB8AT        135        1240        125
       GB11T        155        1400        200
       GB14T        148        1500        182
       GB170E        120        1100        85
       GB220E        135        1200        121
       GB290E/300E        150        1310        158
       GB400E        155        1500        193
       KRUPP Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       克虏伯KRUPP        HM45        42        470        6
       HM50/55        45        480        7
       HM60/75        55        590        10
       HM85/90V        62        600        11
       HM100/110        65        700        18
       HM130/131/135/140V        65        780        18
       HM170/185/190V        75        800        25
       HM200        80        785        27
       HM300/301/305        80        900        30
       HM400/401        80        800        27
       HM550/560CS/V        100        1000        55
       HM600/601        100        1000        55
       HM700/701/702/705        115        1150        86
       HM710/720CS/V        115        1080        82
       HM800        135        1150        115
       HM900/901/902        135        1150        115
       HM950/960CS/V        135        1080        110
       HM1200        120        1250        155
       HM1300/1500CS/V        150        1200        151
       HM1800/2000CS/V        160        1400        220
       HM2200/2500CS/V        180        1500        270
       RAMMER Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       锐猛RAMMER        S-21        45        5        48
       S-20/22        53        8        53
       S-23/D-30        63        15        68
       S-24        70        21        73
       S-25        70        22        75
       S-26/D-50        90        34        85
       S-29        95        45        90
       S-52        110        55        90
       S-54/D-60        115        80        105
       S-55        115        78        105
       S-56/D-70        130        102        110
       S-82        140        130        120
       S-83/D-110        140        130        120
       S-84        160        190        135
       S-86        170        235        145
       E-64        106        65        105
       E-66        115        78        105
       E-68        130        101        110
       G-80        140        135        120
       G-100        170        240        145
       G-120        195        360        170
       INDECO Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       意德科INDECO        MES121/150        45        480        5
       MES180/181/200        48        550        6
       MES300/301/350/351        55        600        10
       MES451/521/550/HB5        65        650        14
       MES601/621/650        80        650        22
       HB8        80        700        24
       MES1200/HB12        90        800        34
       MES1500/HB19        110        900        55
       MES1750/1800        114        1000        72
       MES2000/HB27        120        1000        78
       MES2500        130        1100        101
       MES3000        140        1200        130
       MES3500        145        1300        155
       MES4000        150        1300        160
       MES5000        160        1350        190
       MES7000        180<, /SPAN>        1450        260
       FURUKAWA Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       古河FURUKAWA        HB100        55        500        9
       HB200        70        510        13
       HB700        104        940        49
       HB1G        36        400        3
       HB2G        45        460        4
       HB3G        60        560        11
       HB5G        75        650        20
       HB8G        90        750        30
       HB10G        105        1000        65
       HB15G        120        1000        80
       HB20G        135        1200        120
       HB30G        150        1300        157
       HB40G        160        1400        200
       HB50G        180        1500        270
       F-1        36        400        3
       F-2        45        480        5
       F-3        52        520        8
       F-4        60        540        11
       F-5        68        610        16
       F-6        75        720        23
       F-9        90        800        32
       F-12        105        1000        66
       F-19        120        1100        86
       F-22        135        1200        117
       F-27        140        1300        164
       F-35        150        1400        169
       F-45        165        1450        220
       OKADA Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       冈田OKADA        OUB-301        50        500        6
       OUB-302        61        550        9
       OUB-303        68        700        12
       OUB-304        74        700        19
       OUB-305        85        900        32
       OUB-308        110        1000        54
       OUB-310        122        1100        86
       OUB-312        130        1150        96
       OUB-316        140        1250        130
       OUB-318        150        1400        170
       UB-8        98        1000        45
       UB-11        122        1100        83
       UB-14        136        1200        117
       HAN WOO Hydraulic Hammer
       Brand        Model        Dia.（mm）        Length（mm）        Weight（kg）
       韩宇HAN WOO        RHB301        45        480        5
       RHB302        50        490        7
       RHB303        55        500        8
       RHB305        68        750        19
       RHB308        85        800        32
       RHB313        105        1050        64
       RHB323（323V）        135        1200        121
       RHB328/332        150        1450        181


Q1: How do I select the correct chisel head type for my specific job site?

A: Head selection depends entirely on the material you are breaking. For penetrating concrete or non-stratified material, choose the moil point. If you need directional splitting or are working in trenching and stratified rock, select the wedge/chisel. For extremely hard rock or secondary boulder breaking in quarries, the blunt tool is highly recommended because it relies on shock wave destruction rather than penetration, offering the highest wear resistance.

Q2: What manufacturing measures does SLYM take to prevent chisel snapping?

A: We fight premature breaking through two primary processes: material selection and custom thermal processing. We build our tools using high-quality forged steel chisels rather than cheap cast alternatives. This raw material then undergoes an advanced heat treatment to ensure the tool balances excellent surface durability with core shock-absorption capabilities. This precise balance prevents the tool from becoming overly brittle, allowing it to handle intense workloads rather than breaking under tensile pressure.

Q3: What are the primary causes of premature chisel failure on-site, and how do we prevent them?

A: The two most common operational causes are blank firing and prying damage. Blank firing occurs when the breaker strikes without sufficient downward pressure on the chisel, sending destructive energy reflecting back into the tool and piston. Prying damage happens when operators attempt to use the chisel as a lever to pry rock open while hammering, creating immense bending stress that snaps forged steel. To maximize lifespan, always apply solid downward pressure perpendicular to the object, and never use the tool to leverage materials.

Q4: How often should the tool shank be greased, and what else should we inspect?

A: The chisel shank should be thoroughly lubricated with high-temperature grease every 2 hours of continuous operation to reduce friction against the bushings. Additionally, you must regularly monitor front bushing wear. When the front bushing wear exceeds technical limits, the chisel begins to misalign inside the housing. This misalignment causes the piston to strike the tool at an angle, rapidly accelerating fatigue wear and risking catastrophic piston or tool failure.
