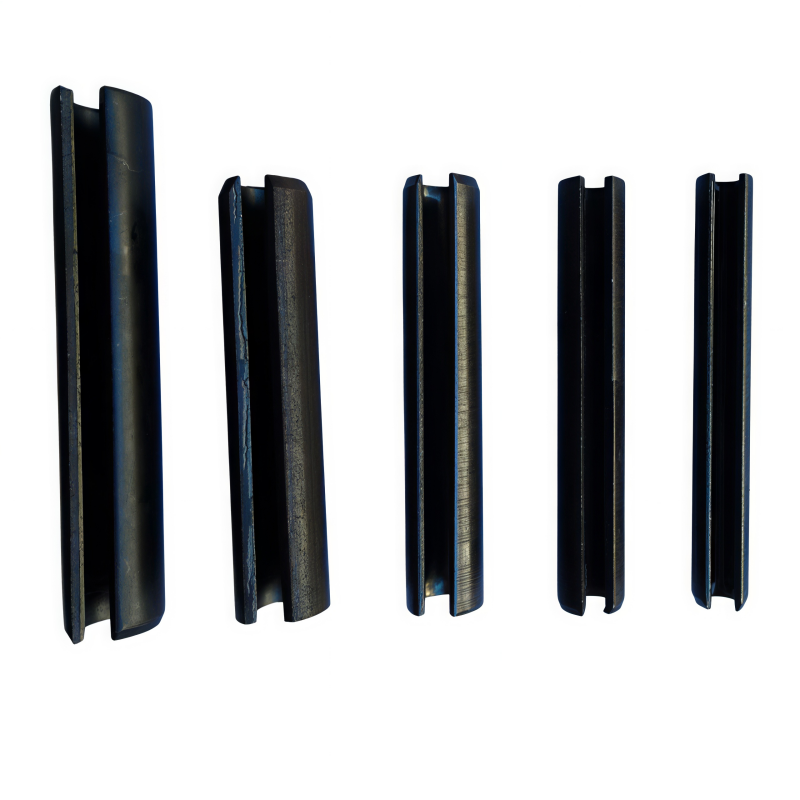

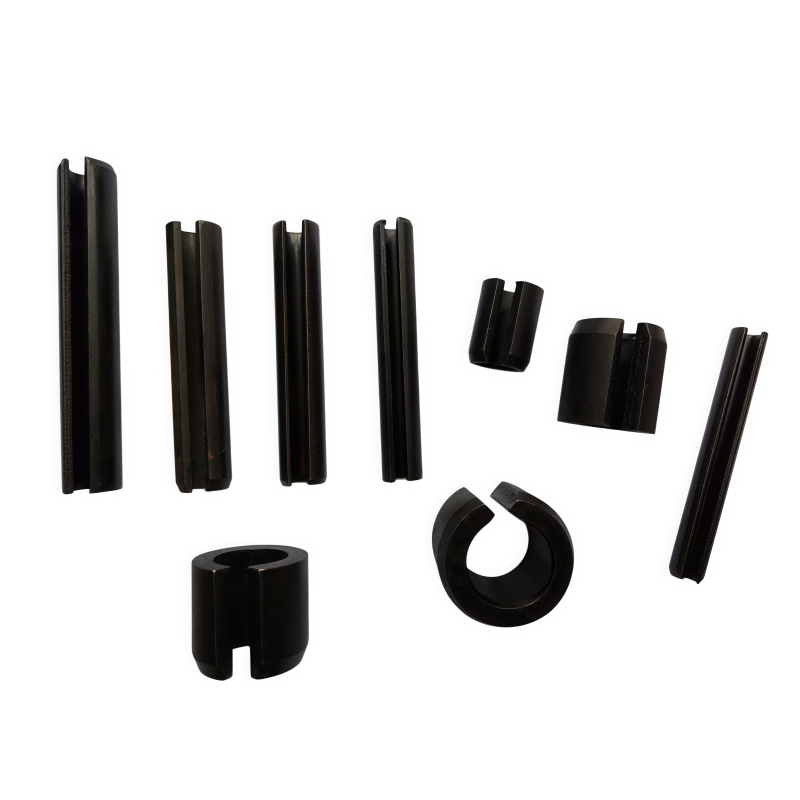

Hydraulic Breaker Bushing Lock Pins

Bushing lock pins are small but important components in hydraulic breaker assemblies that use this type of retaining design. They help locate or retain the bushings within the front head and work with the bushing and housing features to maintain the intended component position.

The exact function and installation arrangement depend on the hydraulic breaker model. A bushing lock pin is different from a tool retaining pin, which secures the chisel or working tool. These two components should not be treated as interchangeable.

1. Main Functions

Bushing Positioning

In applicable designs, the lock pin helps locate or retain the bushing within the front-head assembly.

Retaining Support

A correctly fitted pin helps maintain the intended bushing position during normal breaker operation.

Lubrication-Passage Alignment

Where the design links bushing position to the grease passage, correct positioning helps maintain the intended alignment. The grease fitting, passage and bushing should still be inspected if abnormal grease flow occurs.

Model-Specific Fit

The pin dimensions and retaining arrangement should match the relevant breaker design and component drawing.

2. Precision Machining and Dimensional Inspection

Pin dimensions affect installation, fit and interaction with the retaining features of the bushing and front head.

Depending on the design, inspection may include:

• Pin diameter

• Overall length

• Contact profile

• End geometry

• Surface condition

• Dimensional consistency

Required tolerances and surface finish should be determined from the applicable drawing or product specification.

3. Common Bushing Lock Pin Problems

Deformation or Flat-Spot Wear

Repeated contact, abnormal loads, incorrect fit or wear may cause deformation or flat spots on the pin. Inspect both the pin and the corresponding bushing locking feature.

Cracking or Fracture

A cracked or fractured pin should be replaced. The bushing and front-head locking area should also be inspected to help identify possible contributing damage.

Bushing Movement

If the bushing moves from its intended position, inspect the lock pin, bushing, retaining feature and front-head housing. Do not assume that the pin is the only possible cause.

Abnormal Grease Flow

If grease backs up around the fitting or does not reach the intended area, check the grease gun, fitting, passage and bushing position. A broken or missing lock pin may be relevant in some designs, but the symptom alone does not confirm pin failure.

4. Inspection and Replacement

Inspect the bushing lock pin according to the maintenance schedule for the specific hydraulic breaker model. Additional inspection is appropriate when abnormal bushing movement, lubrication problems or visible damage is found.

Check for:

• Cracks or fracture

• Significant deformation

• Abnormal contact wear

• Incorrect fit

• Damage to the corresponding bushing locking feature

• Damage around the front-head retaining area

Replace the pin when damage or wear compromises its retaining function or exceeds the applicable service limit. Do not apply a universal wear threshold to every model.

When a pin fails, inspect the bushing, front-head locking area and lubrication passage before installing a replacement.

5. Available Configurations and Compatibility

SLYM supplies replacement bushing lock pins for selected hydraulic breaker models and applications.

Different models may have different pin diameters, lengths, end profiles, retaining arrangements and material requirements. Similar appearance alone is not sufficient to confirm compatibility.

Before ordering, please provide:

• Hydraulic breaker brand and model

• Part number, if available

• Pin diameter and length

• Photos of the existing pin and bushing arrangement

• Technical drawing, if available

Our team can help review the available information and confirm the suitable specification before ordering.

6. Product Specification Reference

Specific hardness, case depth, tensile strength and surface roughness values should be added only when confirmed by the applicable production specification and inspection records.

Need a Replacement Bushing Lock Pin?

Send SLYM MACHINERY your hydraulic breaker model, part number, pin dimensions or photos of the existing component.

Our team can help check the available material and dimensional specification before ordering.

For related components, see our Hydraulic Breaker Inner and Outer Bushings or browse the complete Hydraulic Breaker Spare Parts category.
